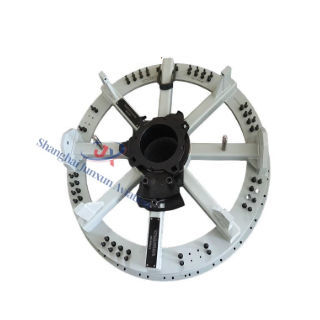

Aeronautical calibrator 856A1423G08

Product
856A1423G08 navigation system calibration fixture for CFM56 engines, restraining fixture for aft core module.

Part Number
856A1423G08

Short description
Fixture, restraining - core module, aft

Overview
The 856A1423G08 is a precision aeronautical fixture developed for mounting and calibrating aircraft navigation system components on CFM56-powered airframes. Manufactured to original equipment standards, it stabilizes the aft core module during alignment and calibration operations, facilitating accurate measurements and safe handling by maintenance teams.

Category
Aviation maintenance tools

Manufacturer
Shanghai Junxun Aviation Technology Co., Ltd.

Details
Size(CM): 108×112×54
Weight(KG): 138

Technical specifications

• Part Number: 856A1423G08
• Designation: Fixture, restraining - core module, aft
• Primary use: Mounting and calibrating aircraft navigation systems
• Engine compatibility: Designed for CFM56 engines
• Compliance: Built to original manufacturer standards
• Dimensions: 108 × 112 × 54 cm
• Weight: 138 kg
• Function: Stabilizes and secures the aft core module to ensure accurate installation and calibration of navigation system components during maintenance
