Contact angle measuring instrument J32001-68lengthforcefor the aerospace industry
Add to favorites
Compare this product
Characteristics
- Measured value
- contact angle, length, force
- Applications
- for the aerospace industry
Description
Product Overview

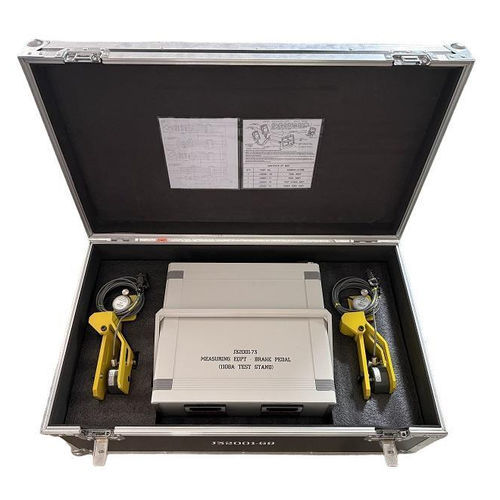

The J32001-68 hydraulic brake system measurement tool is designed to perform load, stroke and angle testing on aircraft brake pedal systems. It is intended for measurement and inspection of hydraulic brake system response on applicable Boeing models during maintenance, troubleshooting and conformity checks.
Applications
Compatible Aircraft
Key Identifiers
Technical specifications
The J32001-68 hydraulic brake system measurement tool is designed to perform load, stroke and angle testing on aircraft brake pedal systems. It is intended for measurement and inspection of hydraulic brake system response on applicable Boeing models during maintenance, troubleshooting and conformity checks.
Applications
- Load, stroke and angle testing of brake pedals
- Maintenance, inspection and troubleshooting of hydraulic brake systems on compatible aircraft
- On-wing functional checks and ground acceptance tests
Compatible Aircraft
- Boeing 737
- Boeing 747
- Boeing 777
- Boeing 787
Key Identifiers
- Product code shown on page: J32001-68
- Category: Measuring Equipment - Brake Pedal
Technical specifications
- Model designation on page: J32001-68
- Function: Hydraulic brake system measurement tool
- Tests performed: Load measurement, stroke measurement, angle measurement
- Target components: Aircraft brake pedal / brake pedal system
- Supported aircraft types: Boeing 737, 747, 777, 787
