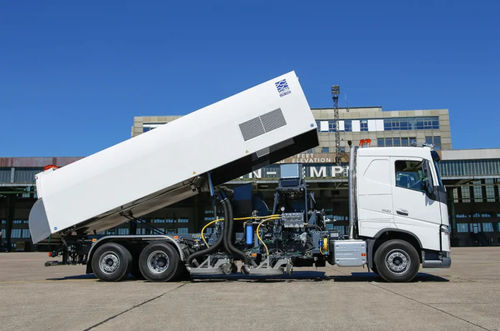

Airport runway cleaning machine ARC 1600®

truck-mountedfor surface cleaningfor rubber removal

The system is built on a compact 3-axle chassis. Due to the larger working widths, this airport runway rubber removal machine provides a higher performance than the ARC 1000®. MAX. WORKING WIDTH 1,600 mm Note: Lower working width is available by installation of less nozzles in the 2 of 800 mm cleaning heads. MAX. WATER PRESSURE (operating / technical limit) 2,500 / 3,000 bar TANK VOLUME (Standard) 17 m³ MAX. PUMP PERFORMANCE 53 l/min Note: Technical performance limit of the most powerful pump. Other pumps available as per customer request. SPEED DURING OPERATION 3 – 80 m/min (0.18 – 4.80 km/h) steplessly adjustable ROTATION OF NOZZLES 0 – 2,500 rpm steplessly adjustable LINEAR PAINT REMOVAL PERFORMANCE 3,400 – 5,400* linear meters / hour * Applicable for 1 layer of paint (standard thickness of 0.8 mm). THERMOPLASTIC REMOVAL PERFORMANCE 2,700 – 4,600 linear meters / hour Thermoplastic spray removal (up to 0.8 mm) Thermoplastic flat line removal (up to 5 mm) Thermoplastic dot line removal (up to 5 mm)
