Hybrid connector
datafor aircraftD-sub

hybrid connector
hybrid connector
hybrid connector
Add to favorites
Compare this product


data, hybrid
for aircraft
D-sub, quadrax, jack
Connection type
spring, flange
Other characteristics
high-speed, EMI-shielded

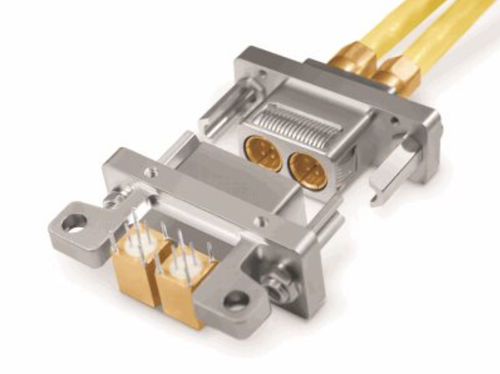

Fibre Channel D-Sub connectors offer high Data rate 6.25 Gbps, high shock and data resistance and high density quadrax. The main function associated with high impedance D-Sub connectors is to ground the outer shield of a quadrax contact directly to the shell of the connector. Features & Benefits Standard keyed and non-keyed insert arrangements: 2, 4, 6, 8 way; hybrid options available Offered with 150 Ohm impedance Data rates up to 6.25 Gbps Six-position keyed and non-keyed jack post versions Common back shells with a wide assortment of accessories, guide hardware and sealing grommets Integrated EMI spring fingers offer superior EMI performance with low contact resistance Featuring Sabritec technology The Fibre Channel D-sub connector series features a multi-finger ground spring fixed around the shell provides a multi-point contact engagement that affords superior EMI shielding. The end result is extremely low contact resistance when measured from the contact outer body to the connector flange. Offered with 150 Ohm quadrax contacts, the connectors are available with 2, 4, 6 or 8 way insert arrangements. Additionally, D-Sub connectors feature ease of assembly, and a robust and comprehensive training package. To ensure that the correct high speed connectors are mated to address specific wiring requirements and keying functions, a keyed jack post option has been incorporated into the design. The six-positioned post allows for 36 possible keying combinations assuring that the correct Fibre Channel D-Sub plug is mated to the correct high speed receptacle. Non-keyed jack post versions are available as well.
