Data connector MIL-DTL-38999

audio/videoboardfor aircraft

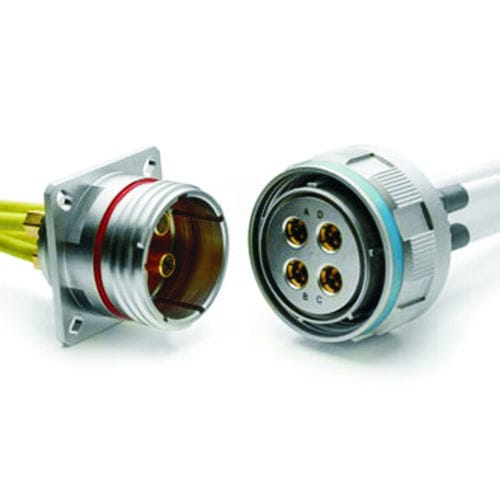

Offering data rates exceeding 2 Gbps and bandwidth up to 3 Ghz. The connectors can be driven via matched impedance differential pair interconnections for board to board high speed data transfer and are ideal for reliable, high-speed transfer of digital audio / video signals. Features & Benefits Data rates exceeding 2 Gbit/Sec Bandwidth: Up to 3 GHz Can be driven via matched impedance differential pair interconnections for board to board high speed data transfer Ideal for reliable, high-speed transfer of digital audio/aideo signals Matched impedance +/- 10 ohms for 100 ohm Standardized backshells. Designed for ease of assembly quadrax construction. Full crimp termination. Recommended Backshells: M85049/21 (str) * M85049/88 (str) * M85049/89 (45- w/extender) Smiths Interconnect only recommends the use of backshells that avoid tight bending radial or high compressive forces being applied to cables that may upset the high frequency performance of the connector cable assembly Smiths Interconnect offers a complete line of differential Quadrax connectors, contacts, and cable assemblies for high speed Ethernet, Firewire, and Fibre Channel applications. Differential pair quadrax connectors offer superior performance in high speed matched impedance data-on-demand applications. The signal to signal and signal to shield characteristic impedance is maintained throughout the connector pair. Smiths Interconnect offer reverse gender Quadrax contacts to provide a more robust assembly for harsh environment applications. This alternative configuration places the stronger and larger diameter inner socket contacts within the more exposed Quadrax pin contact insulator.
