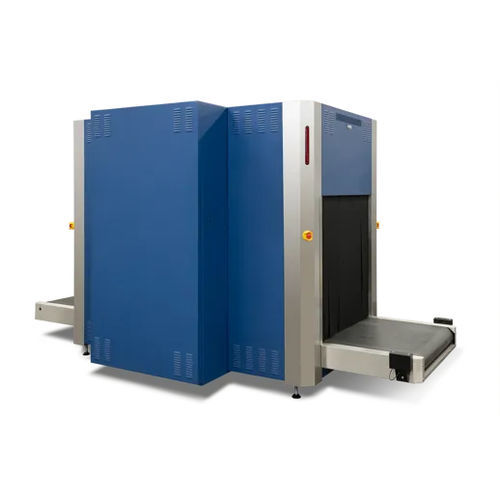

Baggage scanner SDX 100100 DV LC

freightfor parcelinspection

Overview
The SDX 100100 DV LC is designed for screening oversized baggage and break‑bulk freight where a low conveyor height is required for integration with automated feed and discharge systems. Its 100 × 100 cm tunnel aperture and 200 kg evenly distributed conveyor capacity support handling of heavy and over‑sized items in airports, customs and parcel centres.

Equipped with dual‑view X‑ray technology, the system uses two 160 kV generators to capture horizontal and vertical images in a single scan, enabling faster inspections and improved detection of densely packed cargo. Belt speed options of 0.2 m/s (standard) and 0.5 m/s (optional) allow high throughput without compromising inspection capabilities.

The low‑profile conveyor simplifies integration with material handling systems and reduces manual lifting. Combined with the HiTraX 3 imaging platform, the SDX 100100 DV LC provides enhanced image clarity and advanced enhancement tools. Detection capability can be extended with the iCMORE automated detection software for weapons and lithium batteries.

Featured Highlights

• Detection performance exceeding international standards
• Modern hardware and software architecture for reliable operation and updates
• Multiple integration options to fit application needs
• Optional AI‑based iCMORE for lithium battery and weapon detection
• Wire resolution up to AWG 41
• Steel penetration up to 37 mm

Integration options and accessories

• Passive or motorised roller conveyors
• Tunnel extensions
• Barcode readers
• Attendance detectors
• iLOC monitor consoles

Technical Specification (summary)
Dimensions: 3591 (L) × 1860 (W) × 1992 (H) mm
Weight: approx. 1600 kg
Maximum object size: 1000 × 1000 mm (39.4 × 39.4 in)
Conveyor load: 200 kg evenly distributed
Conveyor speed: 0.2 m/s (standard); optional 0.5 m/s

Technical specifications

• Tunnel aperture: 100 × 100 cm
• Dual‑view X‑ray with two 160 kV generators (horizontal and vertical images in one scan)
• HiTraX 3 imaging platform for enhanced image clarity and processing tools
• Belt speed options: 0.2 m/s (standard) and 0.5 m/s (optional)
• Conveyor capacity: 200 kg evenly distributed
• Maximum object size supported: 1000 × 1000 mm
• Approximate machine weight: 1600 kg
• Wire resolution: up to AWG 41
• Steel penetration: up to 37 mm
• Low‑profile conveyor design for integration with automated feed/discharge systems
• Optional accessories: roller conveyors (passive or motorised), tunnel extensions, barcode readers, attendance detectors, iLOC monitor consoles
