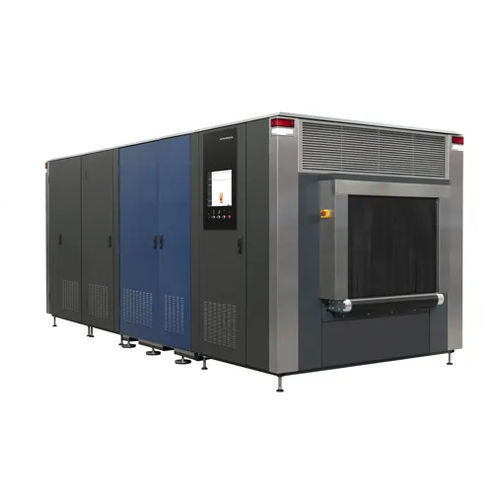

Baggage scanner SDX 10080 SCT

for explosives detectionfor airportCT

Overview
Smiths Detection SDX 10080 SCT is a dual-energy computed tomography (CT) scanner for hold baggage and air cargo screening. Building on the proven HI-SCAN 10080 XCT and CTX 9800 heritage, the system is ECAC EDS 3.1 approved and designed to scale to future standards such as ECAC EDS 3.2 and TSA 7.3. An optional dual-view, dual-energy high-resolution line scanner can be added to supplement 3D CT images with high-resolution 2D colour images for enhanced detection of thin wires and small items.

Key operational benefits

• Dual-energy CT with optional high-resolution dual-view line scanner for improved threat detection
• 3D CT imaging and optional 2D high-resolution colour images
• High throughput: more than 1,800 bags per hour; belt speed 0.5 m/s
• Large tunnel (1070 x 810 mm) to screen objects up to 1000 x 800 mm
• Redundancy option: two scanners provide continued operation if one unit is unavailable
• Scalable, modular design to adapt to evolving regulatory and operational requirements
• Reduced energy consumption and simplified air-based cooling to lower operating costs
• Optional iCMORE algorithms for extended detection capabilities

Downloads
SDX 10080 SCT Product sheet; SDX 10080 SCT Datasheet

Technical specifications

• System dimensions: Without LS: 4568 [L] x 2182 [W] x 2167 [H] mm; With LS: 5450 [L] x 2182 [W] x 2167 [H] mm
• Tunnel dimensions: 1070 [W] x 810 [H] mm
• System weight: Without LS: 6740 kg; With LS: 7890 kg
• Belt speed: 0.5 m/s
• Conveyor height from floor: Minimum 700 mm
• Maximum object size: 1000 [W] x 800 [H] x 1600 [L] mm; Out-of-Gauge (OOG) version object length up to 3800 mm
• Throughput: More than 1,800 bags per hour (designed for high-volume screening)
