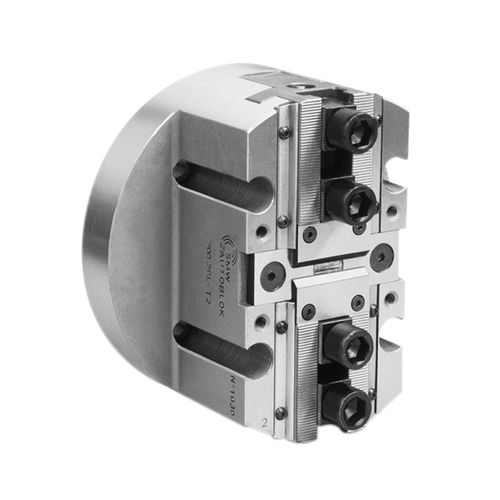

Turning chuck CL series
for aeronautics

turning chuck
turning chuck
turning chuck
turning chuck
turning chuck
Add to favorites
Compare this product


Characteristics

Applications
turning
Other characteristics
for aeronautics
Clamping range

Min.: 80 mm
(3.15 in)

Max.: 315 mm
(12.4 in)

Description

TONGUE & GROOVE INCH SERRATION High precision power chucks Long stroke Closed center 2 jaws Application/customer benefits • Gripping or handling of irregular shaped pieces, for example on special machines • Suitable for vertical machines TONGUE & GROOVE master jaws DIN standard (Ø 80-160 mm) Master jaws with INCH SERRATION (1/16“ x 90°) (Ø 200-315 mm) Technical features • Extra long stroke per jaw • Gripping force transmission via wedge hook • Sealed against swarf and chips Standard equipment 2 jaw chuck 4 T-nuts with bolts (0 200-315 mm) Without top jaws Ordering example 2 jaw chuck CL-D 250 / A8 or 2 jaw chuck CL-C 100/Z92

Catalogs
