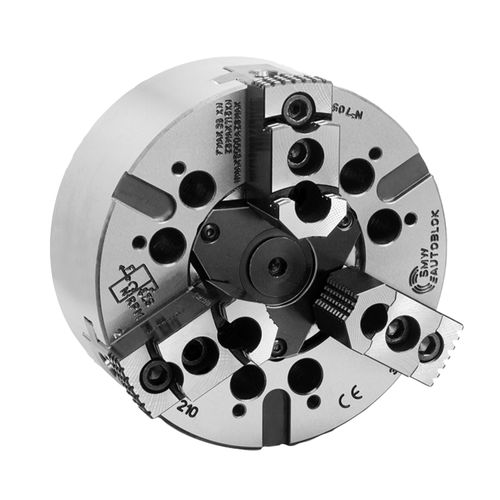

Turning chuck AN series

for aeronautics

INCH SERRATION METRIC SERRATION High precision power chucks Closed center 2 and 3 jaws (4 jaws only Ø 400 mm) Application/customer benefi ts • For chucking parts • Suitable for vertical machines Master jaws with INCH SERRATION (1/16” x 90°, 3/32“ x 90°) Master jaws with METRIC SERRATION (1.5 mm x 60°) (suitable for japanese chuck top jaws) Technical features • Gripping force transmission via wedge hook • Sealed against swarfs and chips • Case hardened body to assure greatest precision and long chuck life Standard equipment 2, 3 or 4 jaw chuck 1 set T-nuts with bolts 1 set soft top jaws Mounting bolts Ordering example 3 jaw chuck AN-D 210 / A6 or 2 jaw chuck AN-M 250 / Z220
