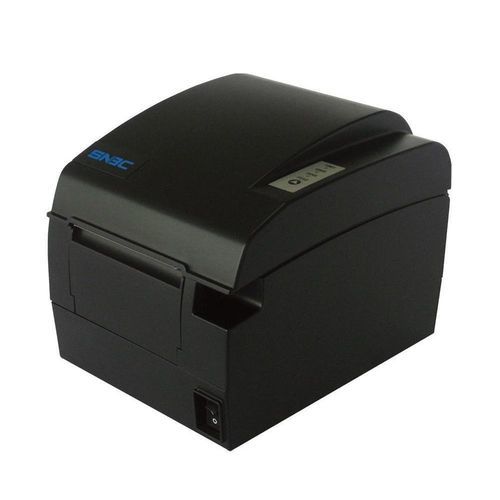

Barcode receipt printer BTP-R580II

direct thermalBluetoothWiFi

Product overview
This 3-inch direct thermal POS receipt printer, model BTP-R580II, is designed for retail and point-of-sale environments requiring fast receipt printing, multiple interface options and comprehensive sensor support.

Key features

• Model: BTP-R580II
• Print method: Direct thermal
• Supported resolutions: 203 × 203 DPI; 203 × 180 DPI
• Max print width: 80 mm
• Max print speed: 230 mm/s
• Memory: FLASH 2MB (4MB optional), RAM 2MB
• Drivers: Windows, MacOS, Linux
• Barcode support: 1D and 2D (UPC, EAN, Code 39/93/128, ITF, Codabar; QR, PDF417, Maxicode, GS1 DataBar)

Print performance

• Resolution options for text and graphics: 203×203 DPI or 203×180 DPI
• Print modes: bitmap download and direct bitmap printing
• Character handling: ASCII, compressed ASCII, optional Traditional/Simplified Chinese; rotate 0°/90°/180°/270°, bold, underline, reverse, enlarge 1–6×

Connectivity and interfaces

• Standard interface: USB
• Optional interfaces: Parallel, Serial (RS-232), Ethernet, Wi‑Fi, Bluetooth, Serial+Ethernet
• Cash drawer support: 1–2 drawers

Media and paper handling

• Paper types: Continuous and marked paper
• Paper width: 54.5–82.5 ±0.5 mm; max print width 80 mm
• Paper thickness: 0.06–0.10 mm
• Max roll outside diameter: 100 mm
• Paper out modes: Full cut, Partial cut, Tear off

Reliability & maintenance

• Print head life: 150 km
• Cutter life: 2,000,000 cuts
• Sensors: paper end, TPH voltage, cutter, TPH overheating, cover open, black mark

Environment & certifications

• Operating conditions: 5–45°C, 20–90% RH (at 40°C)
• Storage conditions: -40–60°C, 20–93% RH (at 40°C)
• Power input: AC 100–240V 50/60Hz; output: DC 24V, 2.5A
• Certifications: CCC, UL, FCC, CB, CE, Energy Star, ICES, UKCA

Technical specifications

• Dimensions (W × D × H): 155.5 × 205 × 160 mm
• Weight: Approx. 2.0 kg
• Bitmap buffers: RAM 128KB, FLASH 512KB
