Barcode receipt printer BTP-R880NPV

direct thermalBluetoothWiFi

Product name

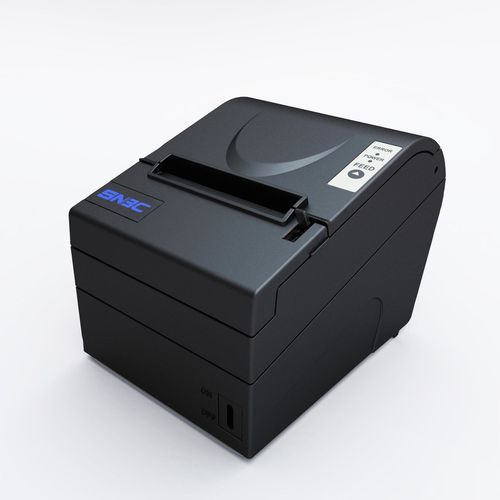

3-inch POS Printer (BTP-R880NPV)

Overview
Compact 3-inch (80 mm) direct thermal POS receipt printer designed for retail and hospitality environments. Provides high-speed printing up to 310 mm/s, multiple interface options for flexible integration, and built-in sensors for reliable paper and mechanism monitoring. Supports 1D and 2D barcodes plus multiple character sets for international use.

Product Specifications

• Print method: Direct thermal printing
• Resolution: 203 × 180 DPI
• Print width: Max. 80 mm
• Print speed: Max. 310 mm/s
• Memory: FLASH 4 MB, RAM 2 MB
• Drivers: Windows, MacOS, Linux
• Sensors: Paper end, TPH voltage, Cutter, TPH overheat, Cover open, Black mark
• Interfaces: USB (standard); Parallel, Serial, Ethernet, Wi‑Fi, Bluetooth, Serial+Ethernet (optional)
• Cash drawer: 1–2 drawers control
• Barcode support: 1D (UPC-A/E, EAN-8/13, Code 39/93/128, ITF, Codabar); 2D (QR, PDF417, Maxicode, GS1 DataBar)
• Fonts/Charset: Standard ASCII (12×24), Compressed ASCII (9×17), Traditional/Simplified Chinese (optional); 95 alphanumeric, 17 international sets, 128×57 graphics
• Character modification: Rotation (0°/90°/180°/270°), bold, underline, reverse, enlarge (1–6×)
• Graphic printing: Bitmap download and direct bitmap print; RAM buffer 128 KB; FLASH buffer 512 KB
• Paper: Continuous or marked paper; widths 57 / 69.5 / 76 / 80 / 82.5 ±0.5 mm; thickness 0.06–0.10 mm; roll OD max. 83 mm; Full/Partial cut or Tear off
• Power: Input AC 100–240 V 50/60 Hz; Output DC 24 V, 2.5 A
• Reliability: Print head life ~150 km; Cutter life ~2,000,000 cuts
• Operating conditions: 5–45°C, 20–90% RH (at 40°C)
• Storage conditions: −40–60°C, 20–93% RH (at 40°C)
• Dimensions / Weight: 145 (W) × 200 (D) × 141 (H) mm; approx. 1.45 kg
• Certifications: UL, FCC, CB, CE, Energy Star, NOM, UKCA

Technical features

• Model: BTP-R880NPV
• Print method: Direct thermal
• Resolution: 203 × 180 DPI
• Max print width: 80 mm
• Max print speed: 310 mm/s
• Memory: FLASH 4 MB; RAM 2 MB
• Interfaces: USB (standard); Parallel, Serial, Ethernet, Wi‑Fi, Bluetooth (optional)
• Barcode: 1D & 2D (UPC, EAN, Code 39/93/128, ITF, Codabar, QR, PDF417, Maxicode, GS1 DataBar)
• Paper widths: 57 / 69.5 / 76 / 80 / 82.5 ±0.5 mm; Max roll OD 83 mm
• Power: AC 100–240 V in; DC 24 V 2.5 A out
• Dimensions: 145 × 200 × 141 mm; Weight: ~1.45 kg
• Reliability: Print head 150 km; Cutter 2,000,000 cuts
• Operating: 5–45°C, 20–90% RH
• Certifications: UL, FCC, CB, CE, Energy Star, NOM, UKCA
