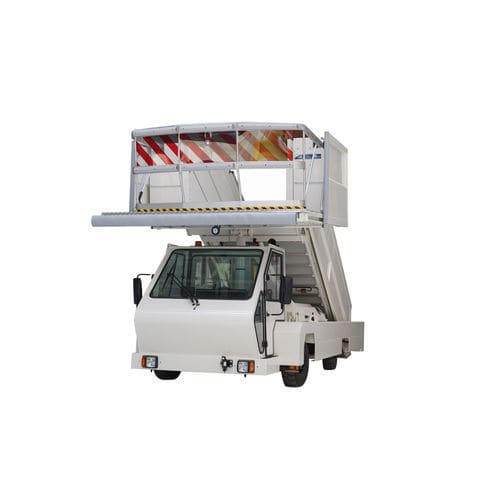

Boarding stairs SPS9.19

mobileself-propelledfor aircraft

Self propelled passenger stairway for medium and large aircraft. The SPS9.19 is designed to serve medium and large aircraft with door heights between 2400 mm (according to the European Commission norms, otherwise 2200 mm) and 5900 mm. The SPS9.19 is stable and robust and can accommodate up to 95 persons at a time. SOVAM ADVANTAGES Industrial chassis designed by SOVAM Cabin with one center seat and a roof glass Vehicle’s control by operator during aircraft approach Simplification of man-machine interface allowing easier use Air transportability Camera on platform (option) SPECIFICATIONS Docking height: 2200 mm (out CE) or 2400 (CE marking) up to 5800 mm // 86.6 in (out CE) or 94.5 (CE marking) to 228 in Passengers capacity: 7650 kg // 18 865 lb (95 pax) Engine power: Diesel (Stage IIIA Tier 4i // Stage V Tier 4 final) Dimensions (L x W x H) : 7855 x 2920 x 3680 mm // 309 x 116 x 145 in (for a 110 in platform) Platform dimensions: 2800 mm (2300 mm optional) x 1600 mm // 110 in (90.6 in optional) x 63 in EQUIPEMENTS 4 stabilizers on ball joint Fork on front coupler SAFETY Soft approach according to IATA 2020 (contactless) – option Emergency pump for lowering and folding OPTIONS ON DEMAND
