Analysis software EddyEVA
designfor aeronautics3D

analysis software
analysis software
analysis software
Add to favorites
Compare this product


Characteristics

Function
analysis, design
Applications
for aeronautics
Other characteristics
3D, 2D

Description

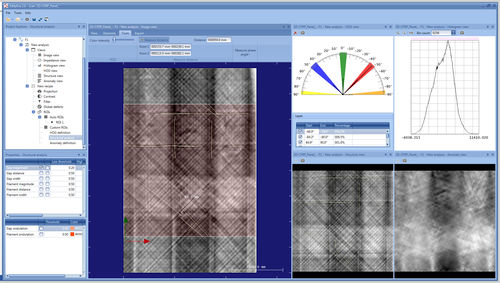

EddyEVA Analysis Software for 2D and 3D Scan Data More sophisticated and automated interpretation of your eddy current data necessary? EddyEVA is design to assist evaluating captured 2D and 3D scan data. Saving, loading and applying assessment recipes to one scan to many more supports the fast and advanced analysis of eddy current data. Advantages Apply the same evaluation recipes to a series of measurements (similar products) Marking of gaps (gap algorithm) based on thresholds Create reports (template given) Automated separation into smaller regions of interest for individual analysis Results can conclude to change measurement recipe Characteristics Graphical user interface only for display of eddy current scans Loading of scans (data are eddy current real and imag values) Elements: Impedance view (advanced eddy current view). Possible to select metal inclusion based on their different electrical conductivity rather than on textural algrorithm. rotate, stretch, zoom scan – if scan is very large or small HOG – histogram of orientated gradients = shows the detected fiber orientations Histogram – shows distribution of data. Cut off low or high data to improve contrast Layer detection – automated and manual. Selected the relevant fiber orientation and set tolerance (e.g 45° +- 3° tolerance) Filtering – sharpen the scan, horizontal or vertical filter Contrast – enhance black & white contrast Gap algorithm – detects gaps based on thresholds Multiple regions of interest – divides the whole scan in smaller regions for detailed analysis Editable report docx, pdf, rtf format
