Hybrid connector SPE

datafor aircraftEthernet

Overview

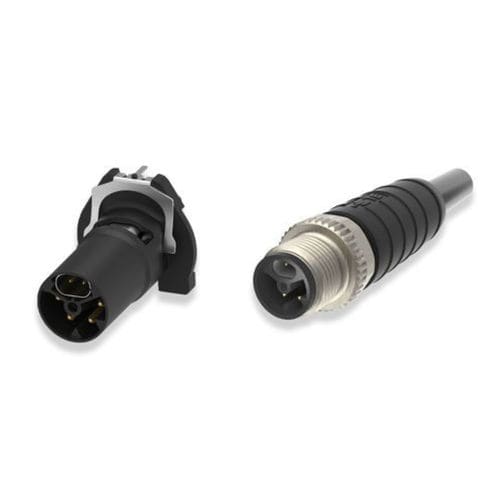

The SPE-M12 Hybrid is an industrial connector for Single Pair Ethernet (SPE) that integrates high-speed data and power delivery in a single M12 interface. It supports data rates up to 1 Gbps and power transfer up to 1 kW (2x 8 A). Engineered for harsh industrial environments, the connector features IP67 protection, a secure locking mechanism and compliance with IEC 63171-7 to ensure SPE interoperability across devices and manufacturers.

Key Features

• Combined data and power in one M12 form factor
• High-speed data transmission up to 1 Gbps
• Power delivery up to 1 kW (dual 8 A conductors)
• Rugged design with IP67 protection for harsh environments
• Secure locking mechanism for reliable mating
• IEC 63171-7 compliance for SPE interoperability

Configuration & Availability

• Cable assembly types: M12 Pigtail | M12 to M12
• Cable assembly configurations: Double Ended | Single Ended
• Connector orientation: Straight (End A / End B)
• Number of positions: 6
• Available cable assembly lengths (m): .5 | 1 | 1.05 | 1.5 | 1.55 | 2.05 | 2.11 | 3.05 | 3.11 | 5.05 | 5.11 | 7.05 | 10.05 | 15
• Available cable assembly lengths (ft): 1.6 | 3.2 | 3.44 | 4.9 | 5.08 | 6.72 | 6.92 | 10 | 10.2 | 16.5 | 16.7 | 23.1 | 32.9 | 49.2 | 49.3

Applications

• Industrial Ethernet and Single Pair Ethernet (SPE) networks
• Robotics, drives, cobots, grippers, sensors and machine vision systems
• IIoT and automation installations requiring miniaturization and decentralized architectures

Technical specifications

• Model: SPE-M12 Hybrid
• Industrial protocols: Single Pair Ethernet (SPE)
• IP rating: IP67
• Number of positions: 6
• Cable assembly type: M12 Pigtail | M12 to M12
• Cable assembly (End A): M12 Plug
• Cable assembly (End B): M12 Plug
• Connector orientation (End A / End B): Straight
• Cable assembly configuration: Double Ended | Single Ended
• Conductor material: Copper
• Jacket material: PUR
• Housing material: PA 6T GF30 | Polybutylene Terephthalate (PBT)
• Connector color (End A / End B): Black
• Cable color: Black
• Wire size (AWG): 16
• Contact current rating (max): 8 A
• Operating voltage (VDC): 50
• Operating voltage (VAC): 63
• Operating temperature range (°C): -45 – 85 | -40 – 85
• Operating temperature range (°F): -49 – 185 | -40 – 185
• Shielded: Yes
• Compliance / Standards: IEC 63171-7 (SPE interoperability)
