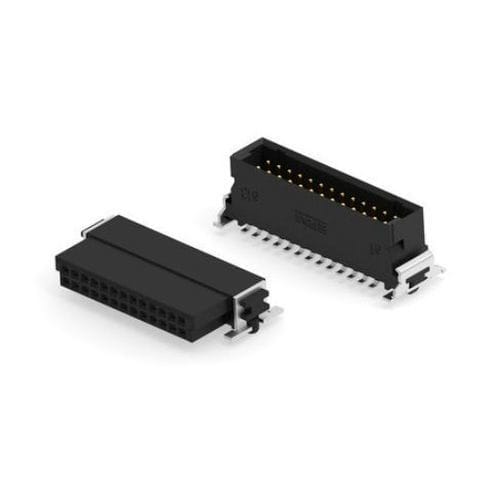

PCB connector 154 series

for aircraftSMCwire-to-board

Overview
SMC series PCB connectors deliver a compact 1.27 mm pitch for high-density board-to-board and wire-to-board interconnects. Available in 12–80 positions with multiple row/column and stacking options, they suit space-constrained designs while ensuring reliable signal paths via polarized housings and gold-plated mating areas.

Product Type Features

• Connector Shape: Rectangular
• PCB Connector Type: PCB mount header | PCB mount receptacle
• Connector System: Board-to-board | Wire-to-board
• Header Type: Fully shrouded
• Sealable: No
• Terminates To: Flexible Printed Circuit (FPC) | Printed Circuit Board
• Product Type: Connector assembly

Configuration Features

• Columns: 6 | 8 | 10 | 13 | 16 | 20 | 25 | 40
• Loaded Positions: 12 | 16 | 20 | 26 | 32 | 40 | 50 | 68 | 80
• Stackable: No | Yes (stack through)
• Contact Load Condition: Fully loaded
• PCB Mount Orientation: Right angle | Vertical
• Rows: 2 | 6

Electrical Characteristics

• Dielectric withstanding voltage: 500 Vrms
• Contact resistance: 25 mΩ
• Operating voltage: 10 VDC
• Contact current rating (max): 1.0 – 1.7 A (variant dependent)

Body Features

• Connector profile: High | Low | Standard
• Primary color: Black | Blue

Contact Features

• Mating area length: 3.25 mm | 4 mm
• Mating tab thickness: 0.3 mm
• Mating tab width: 0.42 mm
• Contact base material: Copper alloy
• Contact shape: Dual beam | Rectangular
• Mating area plating: Gold (Au)
• PCB termination plating: Tin (typical 4–6 µm)
• Contact types: Pin | Receptacle | Socket | Tab

Termination Features

• Termination method to PCB: Surface mount (SMT)
• Termination post & tail length: 4 mm

Mechanical Attachment

• Mounting alignment feature length: 0.75 mm
• PCB mount retention: Location peg (with | without)
• Mating retention: Friction lock | Locking
• Mating alignment: Polarization
• Connector mounting: Board mount

Housing Features

• Mating entry location: Side | Top
• Centerline (pitch): 1.27 mm
• Housing material: Liquid Crystal Polymer (LCP), UL 94V-0

Dimensions

• Lengths (mm): 12.7 | 15.24 | 17.78 | 21.6 | 25.4 | 30.48 | 36.83 | 48.26 | 55.88
• Heights from PCB (mm): 3.85 | 4.25 | 6.25 | 6.75 | 8.25 | 9.05 | 9.85 | 13.65
• Widths (mm): 6.25 | 7 | 7.2 | 9.6 | 9.8 | 10
• Row-to-row spacing: 1.27 mm
• Stack heights (mm): 1.75 | 3.25 | 4.85 | 6.25 | 9.05 | 13.65

Usage Conditions

• Operating temperature range: as low as -55 °C to 125 °C (variant dependent)

Operation / Application

• Shielded: No
• Circuit application: Power & Signal

Industry Standards

• Standards: IEC | ISO
• Agency compatibility: UL | UL E84703 | DIN
• UL flammability rating: UL 94V-0

Packaging Features

• Packaging: Reel | Tape & reel
• Reel diameter: 300 | 330 mm
• Packaging quantity examples: 160 | 170 | 250 | 280 | 560

Technical specifications

• Series: SMC series
• Pitch (centerline): 1.27 mm
• Positions available: 12–80
• Rows: 2 or 6
• Mounting orientation: Right angle or vertical
• Contact plating: Gold (mating), Tin (PCB termination)
• Dielectric withstanding voltage: 500 Vrms
• Operating voltage: 10 VDC
• Typical applications: High-density, space-constrained board-to-board and wire-to-board interconnects
