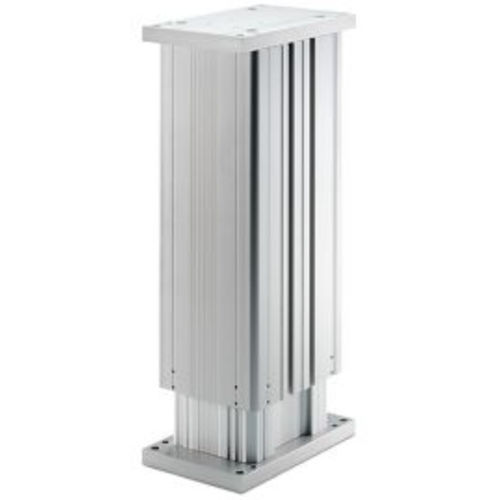

Lifting column DM series

lifting column
lifting column
lifting column
Add to favorites
Compare this product


Characteristics

Force

2,250 N, 6,800 N

Stroke

600 mm
(23.62 in)

Description

DMD and DMA lifting columns are self-supporting, height adjustable units designed for a variety of industrial applications such as work tables, conveyors, loaders/unloaders, and many others. This height adjustment capability especially serves work environments that need to meet specific ergonomic requirements for a wide range of operator positions. Rugged and robust, these columns provide high load torque capability in an extruded anodized aluminum, self-supporting frame. Incorporated into the design are Thomson's Electrak actuator units in both acme and ball screw versions. Mid and end of stroke protections include an overload clutch along a T-slot groove design throughout the entire column profile. DMD/DMA Features and Options • Extruded anodized aluminium column • Internally restrained • Holding brake on ball screw units • Self-locking on acme units • Overload clutch for mid/end-stroke protection • Auto reset thermal switch motor protection • Safety nut on all ball screw models • T-slot grooves on entire profile • CE Compliant • Optional linear potentiometer
