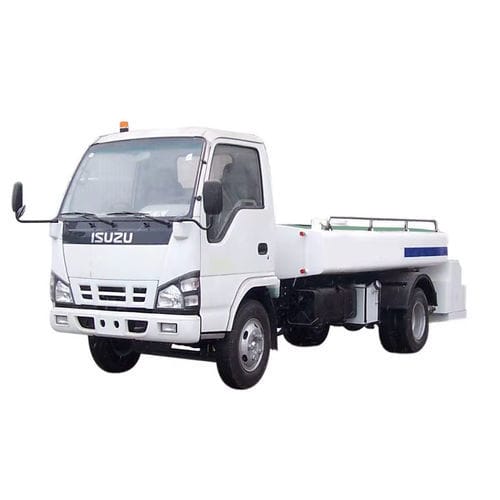

Self-propelled lavatory truck CM-LST-01

for airport

Introduction
The CM-LST-01 aircraft lavatory service vehicle is a purpose-built airport ground support vehicle designed to empty, clean and replenish aircraft lavatory systems. It is intended for use on ramp operations where reliable waste handling and access to aircraft lavatory systems are required.

Key features

• Waste tank handling: Dedicated stainless-steel waste tanks and sealed connections for safe removal and transport of lavatory waste.
• Hygiene and cleaning: Integrated flushing and cleaning systems to maintain sanitary lavatory compartments and reduce turnaround time.
• Lift and platform: Telescopic lift/platform with 450–3200 mm range for access to aircraft service panels and lavatory inlets.
• Pumping and flow: High-capacity pump rated ≥120 L/min and head ≥30 m to ensure fast extraction and transfer of fluids.

Specification
Designed for ground handling operations, the CM-LST-01 combines corrosion-resistant stainless-steel tanks with a compact chassis for maneuverability on the apron. Capacities and pump performance meet typical requirements for narrow- and wide-body aircraft lavatory servicing.

Technical specifications

• Model: CM-LST-01
• Brand: CHEERSMETAL
• Engine power: 96 / 2999 KW/rpm
• Compression ratio: 18.3
• Emission standard: EURO III
• Overall dimensions (L×W×H): 6740 mm × 1875 mm × 2160 mm
• Clean water tank capacity: 1300 L (stainless steel)
• Waste water tank capacity: 2600 L (stainless steel)
• Small waste water tank capacity: 150 L (stainless steel)
• Minimum turning radius: 6800 mm
• Platform lift height range: 450–3200 mm
• Rated water pump speed: 2800–3000 rpm
• Flow rate: ≥120 L/min
• Head: ≥30 m
• Work platform load capacity: ≥100 kg
