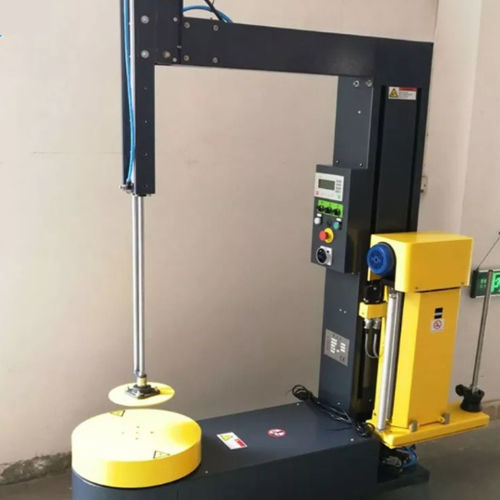

Baggage wrapping machine CM5060

automaticfor airport

Introduction
Airport wrapping machines offer airports and ground handling operators a fast, standardized solution to protect checked luggage during passenger transit. Installed at check-in or departure areas, these systems help reduce tampering, exposure to weather and damage while supporting passenger flow and operational efficiency.

Product Description

• Compact footprint for easy installation in check-in or baggage handling zones
• Protects baggage from theft, rain, condensation and impact during transport
• Accepts small to large items and irregular shapes
• Self-contained unit with low operating cost
• Powered pre-stretch film mechanism (250–300%) to reduce film consumption
• Adjustable rotation speed for flexible baggage acceptance
• Maximum wrapping height up to 900 mm
• Accepts various baggage diameters up to 1000 mm
• Compatible with standard film widths (280 mm ≤ W ≤ 500 mm)

Technical Parameter
AIRPORT LUGGAGE WRAPPING MACHINE
Machine size: L1500mm * W500mm * H1800mm
Power supply: 1P AC220V/110V 50/60Hz 1.0KW
Turntable diameter: 400mm / 600mm / 800mm (Standard is 400 mm)
Turntable loading: 80 KG
Packaging height: 900 mm (Max)
Machine Weight: 150 KG
Turntable Speed: 0–12 r/min
Packing material: LLDPE Film 280 mm ≤ W ≤ 500 mm
Warranty: 12 Months
Turntable height: 500 mm
Packaging diameter: less than 1000 mm

Features / Technical specifications

• Model: CM5060
• Brand: CHEERSMETAL
• Machine size: L1500mm x W500mm x H1800mm
• Power supply: 1P AC220V/110V 50/60Hz, 1.0KW
• Turntable diameters available: 400 mm / 600 mm / 800 mm (standard 400 mm)
• Turntable load capacity: 80 kg
• Max packaging height: 900 mm
• Machine weight: 150 kg
• Turntable speed: 0–12 r/min
• Packing material: LLDPE film 280–500 mm width
• Warranty: 12 months
• Turntable height: 500 mm
• Maximum packaging diameter accepted: less than 1000 mm
