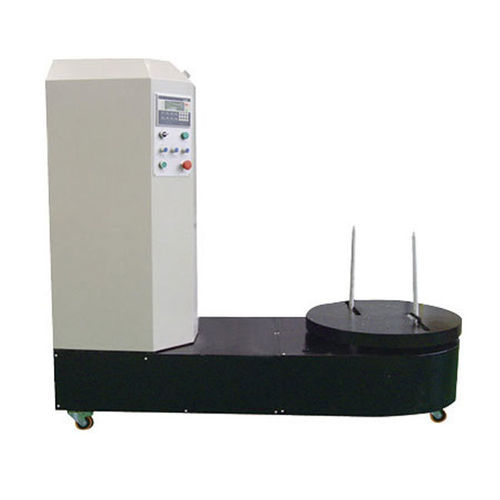

Baggage wrapping machine CM-BZJ

automaticfor airport

Introduction
An airport luggage wrapping machine (baggage wrapping machine) is a specialized ground-handling device used to wrap checked baggage with a protective plastic film to prevent tampering, damage and moisture and to improve load stability during transfer and storage.

Key features and functions

• Baggage protection: wraps baggage with transparent LLDPE film to add a protective layer.
• Damage prevention: reduces risk from rough handling, weather exposure and surface scratches.

Main performance of components

• Turntable drive: motor-driven with variable-frequency control; adjustable speed 6–20 rpm; automatic table reset; automatic product clamping.
• Film system: power pre-stretch up to 250%; adjustable carriage travel and film delivery speed; independent top/bottom winding control; follow-up mechanism for continuous operation.
• Control system: PLC programmable control with text display; adjustable number of wrapping layers; photoelectric height sensing; reinforced-area wrapping function; top-to-top timing adjustment.

Technical parameters
Model: CM-BZJ
Brand: QIS
Wrapping length: 400–1200 mm
Wrapping width: 180–500 mm
Max wrapping height: 800 mm
Power supply: 220V / 1.5 kW
Turntable diameter: 550 mm
Turntable load: 100 kg
Machine weight: 280 kg
Turntable speed: 6–20 rpm
Packing material: LLDPE stretch film (thickness 17–35 μm, width 500 mm, core 76.2 mm, max outer Ø 250 mm)

Packing & Shipping
Standard packing: dimensions 180 cm × 65 cm × 155 cm; N.W. approx. 300 kg. Optional: steel frame packing (6 pcs/package, extra USD 695) or wooden crate (1 pc/crate, USD 200/pc).

Product notes / FAQ
Manufacturer direct supply. Lead time: generally 5–10 days if in stock; 30–35 days if not in stock (depends on quantity). Samples available (extra fee). Standard warranty: 1 year. Typical payment: 30% T/T in advance, balance before shipment.

Specifications

• Model: CM-BZJ
• Brand: QIS
• Wrapping length: 400–1200 mm
• Wrapping width: 180–500 mm
• Max wrapping height: 800 mm
• Power supply: 220V / 1.5 kW
• Turntable diameter: 550 mm
• Turntable load: 100 kg
• Machine weight: 280 kg
• Turntable speed: 6–20 rpm
• Packing material: LLDPE stretch film (thickness 17–35 μm, width 500 mm, core 76.2 mm, max outer Ø 250 mm)
• Packing size: 180 cm × 65 cm × 155 cm; N.W. approx. 300 kg
• Optional packing: steel frame (6 pcs/package, extra USD 695) or wooden crate (1 pc/crate, USD 200/pc)
• Warranty: 1 year
