Radio transceiver KRT2-F
VHFfor aircraft

radio transceiver
radio transceiver
radio transceiver
Add to favorites
Compare this product


Other characteristics
radio transceiver
for aircraft

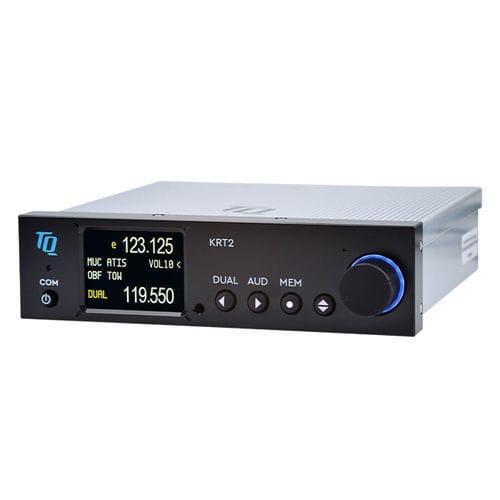

Transflective colour display Direct sunlight compatible compatible light minimal power consumption Integrated 2-place-Intercom, voice controlled ETSO, TSO, FCC approval Digital technology The TQ-KRT2-F 160mm aviation radio for the standard stack is one of the most modern flying radios on the market. Low weight, low power consumption are made possible by the highly digitized technology.A brilliant, transflective colour display which is perfectly readable even in direct sunlight, an integrated, voice-controlled intercom and intuitive operation result in an unbeatable price-performance ratio. General data/basic data Channels: 2278 Speaker output: ≥10 W at 4 Ω Weight: approx. 580 g Dimensions: approx. 155.8 x 41 x 158.4 mm Technical data Type: 8,33 / 25 kHz VHF-Radio Transceiver Frequency range: 117.975 - 137.000 MHz Frequency accuracy: ±5 ppm Operating voltage: 9 - 30 V DC Power consumption: gesamt: 0.2 - 1.0 A (depending on the number of queries) Send: 17 - 30 W (depending on the respective modulation) Standby: 1 - 1.4 W (depending on display brightness setting) Transmission power: 6 W @ ≥ 13.5 V Operating temperature: -20°C ... +55°C Max. Operating height: 35.000 ft
