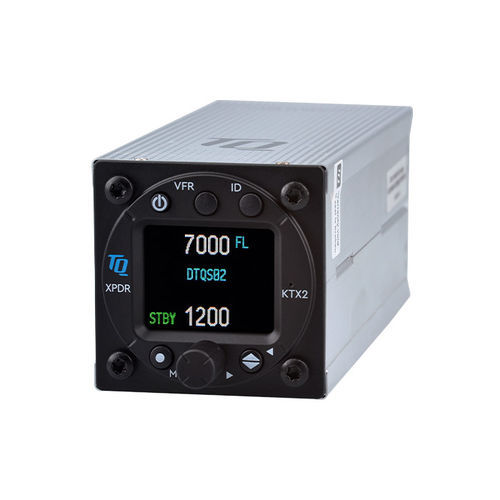

Mode S transponder KTX2-S.V2

for aircraftwith ADS-BTSO

Mode-S Transponder KTX2-S.V2 57mm Ø ADS-B Out capable with Retrofit-Kit TFT colour display suitable for sunlight compact light minimal power consumption antenna loop-through ETSO, TSO, FCC approval digital technology The TQ-KTX2-S.V2 Mode-S transponder for standard 57 mm formats is one of the most modern transponders on the market, featuring low power consumption in a lightweight, compact form.A brilliant, sunlight-suitable TFT color display, compatibility with the ADS-B Out 2020 Mandate, and intuitive operation result in an excellent price-to-performance ratio. The KTX2's exclusive loop-through antenna eliminates the need to install a second antenna for any ADS-B In hardware. General data/basic data Weight: approx. 380 g (0,84 lbs) Dimensions: Standard: 63 x 62 x 149 mm (2,5 x 2,4 x 5,86“) Ø 57mm (2,25“) detail Technical data Operating voltage: 9 - 30 V DC Transmission power: ≥ 24 dBW (250 W) Transmission frequency: 1.090 ± 1 MHz Operating temperature: -20°C ... +55°C Shock: 6 g operation, 20 g break resistance Max. Operating height: 30.000 ft Max. Speed: 250 kt / 463 km/h / 287 mph Type: Mode-S Transponder Class 1 Level 2els Power consumption: 0.2 - 1.0 A (depending on the number of queries)
