Mode S transponder TT23

ADS-Bfor aircraftTSO

Overview
The Trig TT23 and TT23G compact Mode S transponders provide Class 1 transponder functionality in a reduced panel footprint. The TT23 supports ADS‑B Out when connected to a certified external GPS; the TT23G incorporates a certified internal GPS (ETSO‑C199) for an integrated ADS‑B Out solution.

Key features

• Compact form factor: fits a 57 mm instrument hole or compact mount
• Minimal mounting depth to maximise panel and behind‑panel space
• Integrated altitude encoder in the control head (TC20)
• TT23G includes internal ETSO‑C199 certified GPS
• Certified for IFR and VFR operations
• Manual display dimming and splash‑proof control head
• Low power consumption and no fan required
• EASA ETSO and FAA TSO certifications including TSO‑C166b (1090ES ADS‑B)
• Free European Minor Change approvals and selected FAA STC availability

Product design

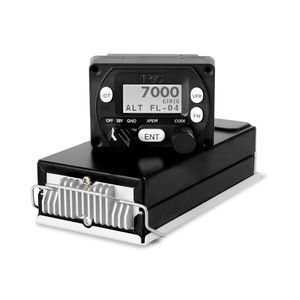

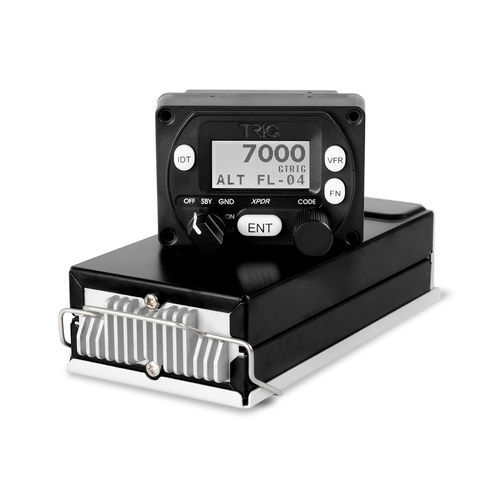

The system separates a compact control head (TC20) with built‑in altitude encoder from a hardware back box that can be installed elsewhere in the airframe. Control head depth is 54 mm and fits into a 57 mm (2¼") round hole or a compact mount; installation kit is supplied. The display is bright, legible and manually dimmable.

Power output and ADS‑B
Nominal transmitter power is 250 W at the connector (Class 1). The TT23/TT23G complies with 1090ES ADS‑B Out requirements (TSO‑C166b). TT23 requires an external certified GPS for ADS‑B Out; TT23G uses its internal ETSO‑C199 GPS.

Compatible position sources

• TN72 — affordable ADS‑B position source for voluntary equipage
• TN70 — suitable for certified Part 23 aircraft requiring TSO‑C145 position source

Versions

• TT23 — Class 1 Mode S and 1090ES; ADS‑B Out with external certified GPS; Transmitter output 250 W; Sales P/N 02627‑00‑01
• TT23G — Class 1 Mode S and 1090ES; integrated ETSO‑C199 GPS for ADS‑B Out; Transmitter output 250 W; Sales P/N 02629‑00‑01

What’s in the box

• Two‑year warranty (from day of installation)
• Installation and Operating manuals (English, German and French)
• Installation kit including plastic brackets for round mounts
• Tray and fittings
• EASA Form One

Technical specifications

• Type: Transponder Class 1 Mode S level 2, ADS‑B Class B1S
• Certifications: TT23 — ETSO C88a, C112e, 2C112b, C166b; TSO C88b, C112c
• Certifications: TT23G — ETSO C88a, C112e, 2C112b, C166b, C199; TSO C88b, C112c
• Compliance: ED‑73E, ED‑14G, DO‑160G, DO‑260B, DO‑178C, DO‑178B, DO‑254 Level C
• Supply voltage: 11–33 V DC
• Typical consumption (14 V): TT23 idle 0.15 A / active 0.28 A; TT23G idle 0.15 A / active 0.34 A
• Nominal transmitter power: 250 W at connector
• Operating temperature: transponder −40 °C to +70 °C; controller −20 °C to +55 °C
• Weight (back box): TT23 300 g; TT23G 315 g; Control head (TC20) 90 g
• Dimensions (controller): H 44 × W 63 × L 54 mm; transponder in tray H 37 × W 64 × L 149 mm
