Force measuring instrument V3

digitalfor the aerospace industry

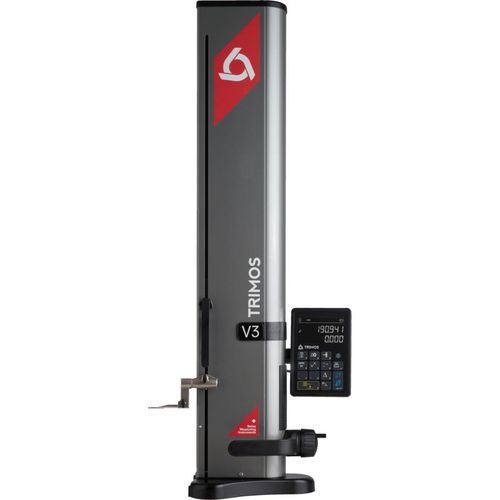

The Height Gauge V3 has been developed for the most difficult workshop environments. Manufactured entirely in Switzerland, it guarantees a robust, precise, and reliable product in the long run. For more than 40 years, Trimos' philosophy has been to offer easy-to-use instruments that are highly efficient in production environments. The display unit provides functions that are directly accessible and depicted with easy-to-understand symbols. This allows for easy and quick handling even by unqualified personnel. The large 2-line "Black Mask" display offers exceptional contrast in all lighting conditions, a unique characteristic on the market. The V3 height gauge represents the entry-level of Trimos universal height gauges. It fully benefits from the developments realized on superior models. A robust and easy-to-use instrument including all functions essential for use in the workshop. - Measuring ranges: 400 and 700 mm - Extremely easy to use - Electronically adjustable measuring force - Autonomy: 40 h (lithium-ion batteries) - Standard probes up to 400 mm - Vast range of accessories - All adjustments possible without tools - RS232 and USB interfaces V3 - Measuring range: 400 mm (16 in) / 700 mm (28 in) - Application range: 508 mm (20 in) / 812 mm (32 in) - Max permissible errors, BMPE: 7 µm - Repeatability, RMPE (2s): 2 µm (Ø: 4 µm) - Frontal squareness deviation SMPE: 10 µm (400 mm), 15 µm (700 mm) - Max. Resolutions: 0.001 mm (0.00005 in) - Measuring force: 0.75 ÷ 1.5 N - Autonomy: 40 h - Interfaces: USB / RS232 - Air cushion: No - Weight: 21 kg (400 mm), 24 kg (700 mm) Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
