Force measuring instrument V4

digitalfor the aerospace industry

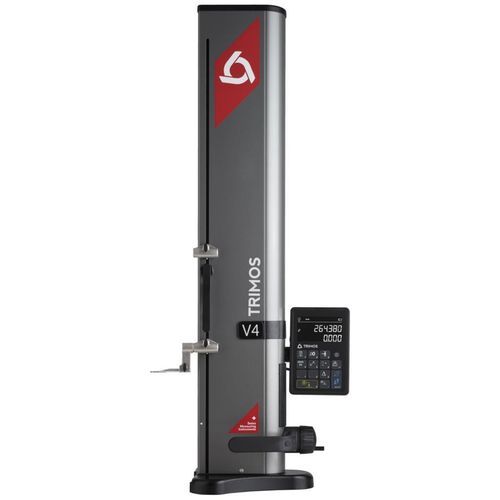

An easy-to-use, universal and reliable height gauge for the most difficult workshop environments. Discover precision at its peak with the Trimos Height Gauge V4, meticulously crafted in Switzerland for enduring performance in demanding workshop environments. Our commitment to quality spans over 50 years, offering instruments that excel in ease of use and efficiency in production. Entirely manufactured in Switzerland, the V4 ensures robustness, precision, and long-term reliability, making it ideal for challenging workshop conditions. Its user-friendly display unit features easily accessible functions depicted with universally understandable symbols. The large 2-line “Black Mask” display offers exceptional contrast in all lighting conditions, setting it apart in the market. Building on the success of the V3, the V4 height gauge extends capabilities with a second probe holder and an air cushion for effortless movement on the measuring table. The handle boasts programmable function buttons, providing swift access to frequently used functions, ensuring efficient operation by both skilled and untrained personnel. Explore the vast range of accessories available, enhancing the adaptability of the Trimos Height Gauge V4 to meet your specific measurement needs. Invest in precision, reliability, and efficiency – choose Trimos for a superior metrology experience. - Measuring ranges 400 and 700 mm - Extremely easy to use - Electronically adjustable measuring force - Autonomy: 20 h (lithium-ion batteries) - Standard probes up to 400 mm - Vast range of accessories - All adjustments possible without tools - RS232 and USB interfaces - Wireless data transfer (optional) V4 400 700 Measuring range mm (in) 407 (16) 711 (28) Application range mm (in) 719 (28) 1023 (40) Max permissible errors, BMPE µm 2.5 + L/250 2.5 + L/250 Repeatability, RMPE (2s) µm 2 (Ø: 3) Frontal squareness deviation SMPE µm 9 13 Max. Resolutions mm 0.001 (0.00005) Measuring force N 0.75 ÷ 1.5 Autonomy h 20 Interfaces USB / RS232 Air cushion Yes Weight kg 21 24 Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101). - Measuring ranges: 400 mm and 700 mm - Application range: 719 mm (400 model), 1023 mm (700 model) - Max permissible errors: 2.5 + L/250 µm - Repeatability: 2 µm (Ø: 3 µm) - Frontal squareness deviation: 9 µm (400), 13 µm (700) - Max. resolution: 0.001 mm (0.00005 in) - Measuring force: 0.75 ÷ 1.5 N - Autonomy: 20 h (lithium-ion batteries) - Interfaces: USB / RS232 - Air cushion: Yes - Weight: 21 kg (400), 24 kg (700)
