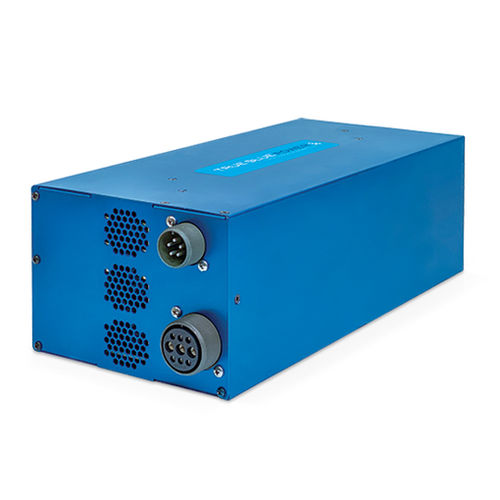

Aircraft maintenance frequency converter TFC4002

3-phase

Manufacturer Mid-Continent Instruments and Avionics Quiet your cabin and cut replacement costs with the TFC4002 Frequency Converter. Weighing only 19 pounds, it’s the lightest and quietest frequency converter in its power class and is easy to install in tight, hard-to-reach spaces. You’ll gain more useful load and access to up to 4,000 watts of wall outlet power. Benefits and Specifications Benefits The QUIETEST. The LIGHTEST. The MOST RELIABLE. 93% efficiency Single phase, pure sine wave < 3% total harmonic distortion output wareform -0.8 to +0.8 power factor Remote On/Off Short circuit, under-voltage, over-voltage, overload (up to 150% for 5 minutes, without damage), DC offset protection Designed and built in Wichita, Kansas, USA Specifications Input Voltage 115/200 VAC Output Voltage 230 VAC 50 Hz single phase Weight 18.9 lbs (8.57 kg) Altitude 55,000 feet Temperature -40°F to +167°F (-40°C to +75°C) Mating Connector 9019110-4, 9019507-2 Case Anodized aluminum, blue Certification FAA PMA approved FAA TSO-C230 RTCA DO-160G
