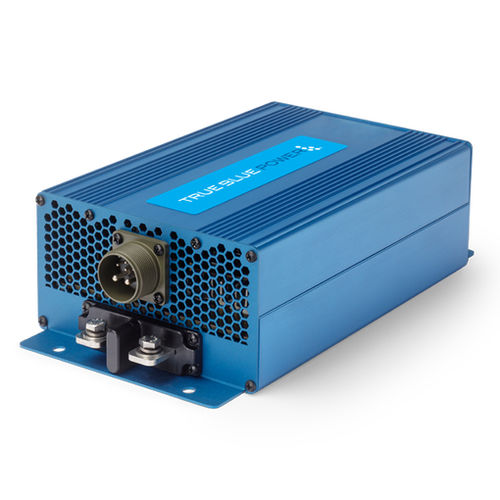

Power DC/DC converter TC6500

compact

Manufacturer Mid-Continent Instruments and Avionics The high voltage TC6500 converts 270 VDC to 28 VDC to power avionics and related systems. The DC-to-DC converter is compact, lightweight and easy to install inside or outside of the pressure vessel. It has 96% peak efficiency and features an overload capacity up to 110% of rated power without damage. Benefits and Specifications Benefits High Voltage. High Efficiency. Low Weight. 96% efficiency Remote control Three brushless, temperature-controlled and speed-controlled fans; Thermostatic On/Off control Up to 110% of rated power without damage overload capacity Input transient, temperature monitoring, short circuit and over current protection Designed and built in Wichita, Kansas, USA Specifications Weight 10.4 lbs (4.7 kg) Dimensions 12.0”L x 6.3”W x 3.5”H Altitude 55,000 feet Temperature -67°F to +158°F (-55°C to +70°C) Mating Connector 9019803-8, 9019803-9 Case Anodized aluminum extrusion, blue Certification FAA TSO-C71 pending RTCA DO-160G pending
