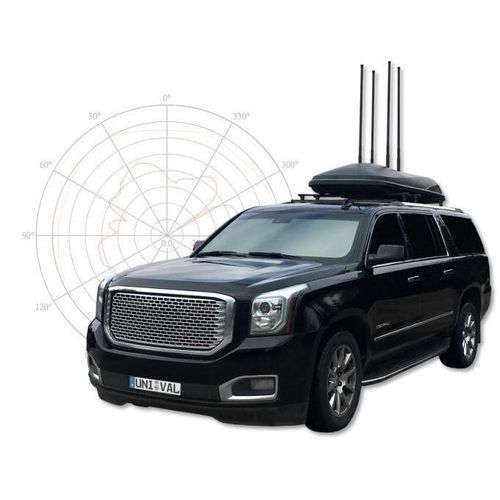

Vehicle-mount drone jammer XWJ2-V

6 GHz

Overview
The XWJ2-V is a vehicle-mounted, rack-integrated jamming system designed for convoy protection and mobile operational deployment. Modular rack inserts allow straightforward integration into vehicle platforms while providing scalable jamming capability.

Key capabilities
Fully engineered and manufactured in Germany. Modules are freely and individually programmable for multiple start/stop frequencies, jamming modes, output power, modulation and other parameters to optimise signal performance and efficiency.

Full frequency jamming & antenna integration
The antenna array for XWJ2-V is engineered per vehicle platform. Polarisation (horizontal/vertical) and antenna placement are calculated to match operational environment and mission requirements.

High power & battery system
The XWJ2-B battery system is purpose-built for the platform using solid-state lithium technology, offering capacities up to 630 Ah for extended autonomous operation.

Versatile jamming modes & deployment
Modular architecture supports operational flexibility and simplified maintenance. Plug-and-play modules enable rapid field replacement. Power can be supplied via a dedicated 230 V shore-power module or through the vehicle using the XWJ2-B battery system.

Pre-programmed jamming profiles

• Selector switches for programming – OFF, Program 1, Program 2, Program 3
• Remote control connector
• USB connector for programming
• Ethernet connector
• Antenna connector
• Main ON/OFF switch
• LED indicators: green for health status, blue for ON/OFF

Special jamming antennas & sections

• Jamming module section in anti-shock rack system
• Power management section
• Antenna system
• Driver’s cabin / Remote control unit

Intuitive programming, power and battery details

• Smart voltage regulator: Input 12 V. Charge output 29.4 V. Regulator supplies continuous 28 V to the XWJ2-V without over- or under-current peaks.
• Battery pack: 28 V / 630 Ah (solid-state Li-ion). Weight: approx. 80 kg with case. Dimensions: 548 mm (L) x 520 mm (W) x 208 mm (H).
• Operating temperature: Charge: -20 °C to +60 °C. Discharge: -40 °C to +75 °C.

Modular system
The XWJ2-V uses a modular jamming architecture allowing modules to be exchanged, scaled or reconfigured to meet mission parameters and maintenance requirements. Includes shock-proof rack mounting for vehicle integration.

Real-time status monitoring
Integrated real-time temperature and system status monitoring protects critical components and ensures operational safety.

5G readiness
XWJ2-V is 5G-ready and can be upgraded to cover 5G frequency bands as operational needs evolve.

Characteristics / Specifications

• Model: XWJ2-V (vehicle-mounted rack-mounted jammer)
• Jamming module DDS board: 20 MHz – 7.2 GHz, freely programmable, 4-channel, FPGA controlled
• Output power per module: 20 W – 150 W (operational jamming noted up to 6 GHz)
• Voltage regulator: provides continuous 28 V to system; input 12 V / charge output 29.4 V
• Battery: XWJ2-B solid-state Li-ion, 28 V / 630 Ah, weight ~80 kg (with case), dimensions 548 x 520 x 208 mm
• Operating temperatures: Charge -20 °C to +60 °C; Discharge -40 °C to +75 °C
• Mechanical: shock-proof rack mounting for vehicle integration
• Controls & connectivity: selector switches (programs), remote control connector, USB for programming, Ethernet connector, antenna connectors, main ON/OFF switch, LED status indicators
• Antenna: platform-specific engineered array with polarization and placement optimized per vehicle and mission
• Modularity: plug-and-play modules for field replacement, scalability and reconfiguration
• Monitoring: integrated real-time temperature and system status monitoring
• 5G: upgradable / 5G ready
• Product family: XWJ2-V, XWJ2-S, XWJ2-P
