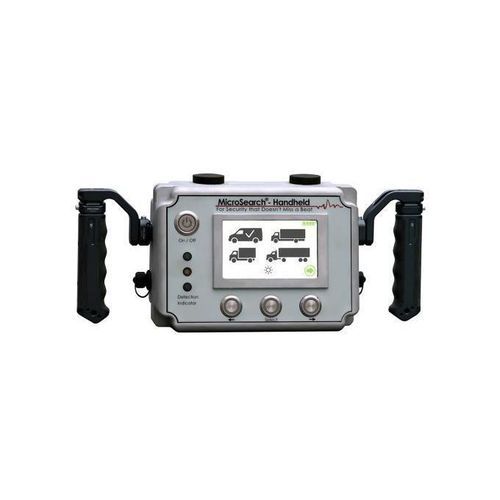

Human presence detector MicroSearch® H3P1

vibrationportablefor vehicles

Overview
The MicroSearch® H3P1 is a handheld, portable human presence detection system that identifies hidden occupants in vehicles by sensing micro‑vibrations produced by the human heartbeat. Backed by over 20 years of operational experience and validated by the U.S. DHS Transportation Lab, the system delivers a 97% detection rate with a 2% false alarm rate while avoiding vehicle intrusion.

Key Features

• Heartbeat detection technology: senses micro‑vibrations from the heartbeat to reliably detect hidden people without opening the vehicle.
• Immediate readiness: no calibration or warm‑up required; ready for instant deployment.
• Ergonomic handheld design: lightweight (1.5 kg) optimized for field inspections.
• User interface: 5‑inch anti‑reflective full‑color LCD touchscreen plus physical controls for use in varied light conditions.
• Rugged construction: rated IP65 (dust/water jet protection) and IK08 (impact resistance) for demanding environments.
• Magnetic attachment: four integrated magnets providing 31 kg holding force for secure mounting on vehicle sides or undersides.
• Fast operation: reliable detection results in < 30 seconds, total vehicle test < 1 minute.

Portable Inspection Kit
The system is delivered in a rugged transport case containing the handheld detector and accessories for secure storage and rapid field deployment. The kit is designed for checkpoint operations and mobile inspection teams.

Benefits & Applications

• High reliability: validated 97% detection rate with minimal false alarms (2%).
• Cost effective: lower investment and operating cost compared with X‑ray systems; no consumables and low maintenance.
• Operational efficiency: rapid inspection times (under 1 minute per vehicle) support high throughput at checkpoints.
• Safety: non‑radioactive technology safe for operators and stowaways.
• Mobility: battery‑operated with full portability for temporary and mobile checkpoints.
• Use cases: border control, police and customs roadside checks, prison vehicle inspections, critical infrastructure protection, airport access screening.

Integration & Compatibility

• Standalone operation: designed primarily as a self contained handheld unit for independent use.
• Logistics support: supplied with a custom transport case and essential accessories (chargers, adapters).
• Service agreements: supported by SLA/RMA options for rapid exchange and maintenance.

Deployment Options

• Mobile deployment: handheld, battery powered with approximately 7 hours operation (Li‑Ion battery).
• Vehicle types: suitable for cars, vans, trucks, buses and trailers.
• Environmental range: operates from -20 °C to +60 °C.

Product Variation
MicroSearch H3P1S: a German market configured version of the MicroSearch H3P1 platform, developed to meet specific procurement and regulatory requirements while retaining the proven micro‑vibration human detection technology.

Technical specifications

• Detector type: vibration detection (heartbeat micro‑vibrations).
• Detection rate: 97% (validated by U.S. DHS Transportation Lab).
• False alarm rate: 2%.
• Measurement duration: < 20 seconds (total vehicle test < 1 minute).
• Display: 5‑inch (12.7 cm) anti‑reflective LCD, full color.
• Weight: 1.5 kg.
• Dimensions: 27 x 16 x 10 cm.
• Battery life: 7 hours (Li‑Ion 3.8 V / 3.81 Ah).
• Charging time: 3 hours.
• Operating temperature: -20 °C to +60 °C.
• Protection class: IP65 (dust/water), IK08 (impact).
• Magnetic force: 31 kg (4 integrated magnets).
• Certifications: CE, FCC, UN38.3, IEC 62133, UL2054.
