Aircraft antenna JL 20GPS
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Type
- GPS
Description

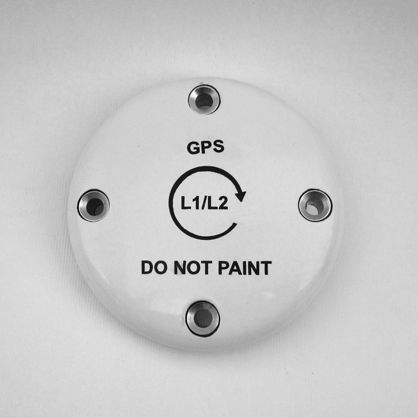

JL 20 is a dual-band L1/L2 passive GPS antenna providing coverage at 1227.6 MHz and 1575 MHz, with a VSWR of 2.0:1. Its vacuum moulded composite radome provides enhanced protection against environmental severities. This antenna is ideal for high speed military aircraft.
Tests in accordance with MIL 810 F.
L-Band GPS Antenna
Electrical
Frequency Range (L1)1565 MHz - 1585 MHz
Frequency Range (L2)1217 MHz - 1237 MHz
VSWR2.0:1
PolarizationRHCP
Radiation PatternCardioid
Impedance50 Ω Nominal
Static ProtectionDC Grounded
Power RF1 W
Mechanical
Weight200 grams (max)
Height18 mm (max)
MaterialReinforced Glass Epoxy
FinishPU Gloss
ConnectorSMA Female
ColorWhite
Environmental
Temperature-55°C to +90°C
Altitude60,000 ft
