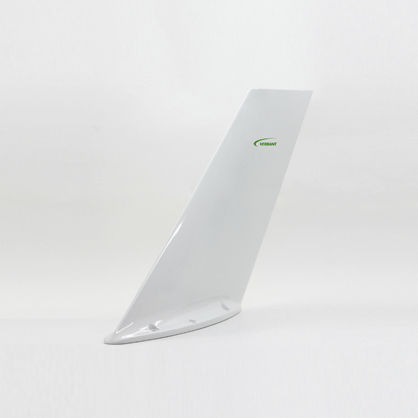

Aircraft antenna JD 350 AUHFbroadbandblade
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Type
- UHF
- Other characteristics
- broadband, blade
Description
JD 350 A is a broadband (V/UHF) low profile, low drag blade antenna from the 350 series, designed to be used with multi-function communication systems. This antenna is suitable for supersonic aircraft, fixed wing aircraft and helicopters. The single piece continuous fibre reinforced epoxy shell is designed to meet stringent MIL requirements of high performance supersonic aircraft.
Tests in accordance with MIL 810 F.
V/UHF Blade Antenna
Electrical
Frequency Range30 MHz - 410 MHz
VSWR (Typical)2.0:1
VSWR (Max)3.0:1
PolarizationVertical
Radiation PatternOmnidirectional in azimuth
Impedance50 Ω Nominal
Static ProtectionDC Grounded
Power RF40 W
Mechanical
Weight1300 grams (max)
Height320 mm (max)
MaterialReinforced Glass Epoxy
FinishPU Gloss
ConnectorTNC
ColorWhite
Environmental
Temperature-54°C to +90°C
Altitude60,000 ft
