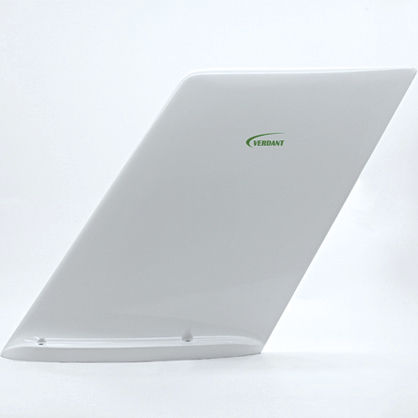

Helicopter antenna JH 10VVHFbroadbandblade
Add to favorites
Compare this product
Characteristics
- Applications
- for helicopter
- Type
- VHF
- Other characteristics
- broadband, blade
Description
JH 10V is a VHF broad band antenna designed to be used in tactical homing system in pairs or as single unit for communication. The radiating element is encased in a single piece glass fibre reinforced epoxy shell. The rugged design and construction of the antenna helps to withstand severe environmental conditions. This antenna is qualified and suitable for helicopters and subsonic aircrafts.
Tests in accordance with MIL 810 D.
VHF Blade Antenna
Electrical
Frequency Range135 MHz - 175 MHz
VSWR2.5:1 (max)
PolarizationVertical
Radiation PatternOmnidirectional in azimuth
Impedance RF50 Ω
Static ProtectionDC Grounded
Power RF35 W
Mechanical
Weight1750 grams (max)
Height316 mm (max)
MaterialGlass Epoxy
FinishGloss
ConnectorTNC
ColorWhite
Environmental
Temperature-55°C to +90°C
Altitude50,000 feet
