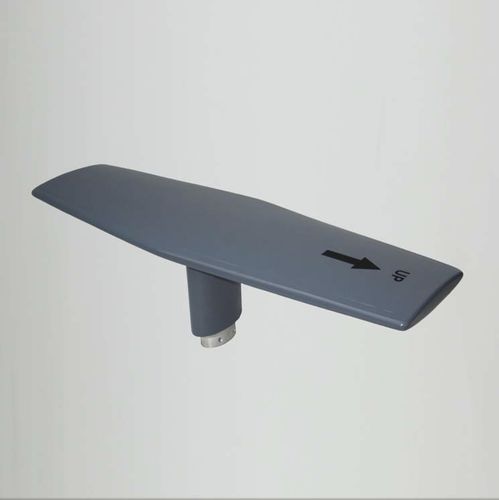

JD 401 S1G-A is a broadband (VHF/UHF) low profile blade antenna to be used with communication systems. The antenna is designed to provide optimum performance in the 30-512 MHz frequency band. These low profiles, low drag blade antennas are ideally suited for helicopter, fixed wing aircrafts and UAV. The fibre reinforced epoxy antenna shell is designed to meet stringent MIL requirements.
Tests in accordance with MIL 810 F/G
V/UHF Dipole Blade Antenna
Electrical
Frequency Range30 MHz - 512 MHz
VSWR3.5:1 (Max)
PolarizationVertical
Radiation PatternOmnidirectional in azimuth
Impedance RF50 Ω
Static ProtectionDC Grounded
Power RF25 W
Mechanical
Weight1475 grams (Max)
Height198 mm (Max)
MaterialGlass Epoxy
FinishGrey Satin / Semi-gloss
ConnectorSMA Female
Environmental
Temperature-54°C to +71°C
Altitude50,000 feet
