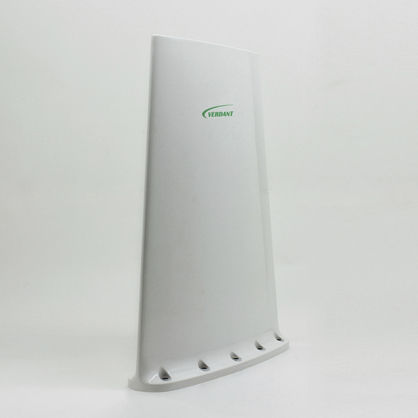

Aircraft antenna JD 301for dronesUHFbroadband
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft, for drones
- Type
- UHF
- Other characteristics
- broadband, blade
Description
JD 301 is a broad band low profile blade antenna designed to be used with multi function communication systems. These antennas are designed as low profile, low drag blade antennas suited for fixed wing aircrafts, helicopters and UAVs. The fibre reinforced epoxy antenna shell is designed to meet the stringent MIL requirements.
Tests in accordance with MIL 810 F
V/UHF Blade Antenna
Electrical
Frequency Range100 MHz - 550 MHz
VSWR2.5:1 (max)
PolarizationVertical
Radiation PatternOmnidirectional in azimuth
Impedance RF50 Ω
Static ProtectionDC Grounded
Power RF25 W CW
Mechanical
Weight1100 grams (max)
Height318 mm (max)
MaterialGlass Epoxy
FinishGloss
ConnectorN Type
ColorWhite
Environmental
Temperature-55°C to +90°C
Altitude60,000 feet
