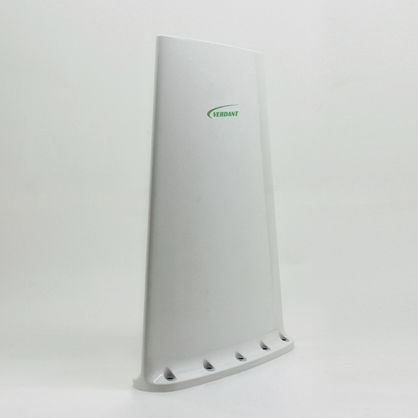

JD 302 is a broad band low profile blade antenna designed to be used with multi function communication systems. These antennas are designed as low profile, low drag blade antennas suited for fixed wing aircrafts, helicopters and UAVs. The fibre reinforced epoxy antenna shell is designed to meet stringent MIL requirements.
Tests in accordance with MIL 810 F.
V/UHF Blade Antenna
Electrical
Frequency Range30 MHz - 550 MHz
VSWR3:1 (max)
PolarizationVertical
Radiation PatternOmnidirectional in azimuth
Impedance RF50 Ω Nominal
Static ProtectionDC Grounded
Power RF25 W
Mechanical
Weight1100 grams (max)
Height318 mm (max)
MaterialGlass Epoxy
FinishGloss
ConnectorN Type
ColorWhite
Environmental
Temperature-55°C to +90°C
Altitude60,000 feet
