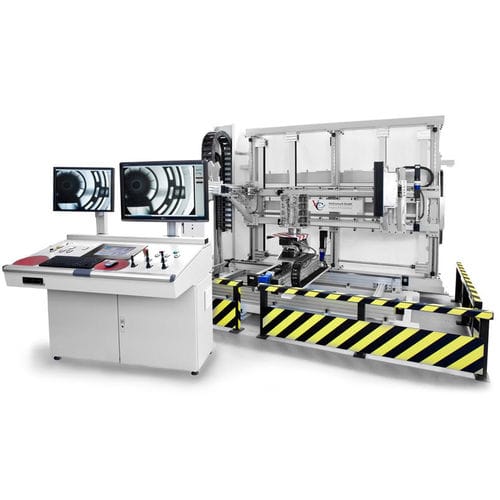

X-ray inspection machine XRH 433

surfaceaeronauticalfor NDT

The XRH433 is a versatile system for highest inspection accuracy, while still maintaining flexibility. This system is a typical customized solution to test aerospace parts and can be easily tailored towards other inspection problems. The system contains of six CNC programmable axes. Especially the big magnification axis allows high quality micro-focus inspection. The system is capable of advanced inspection processes like Automated Defect Recognition (ADR) and Computed Tomography (CT). As an image source CR-plates, digital detectors or film can be chosen depending on the application. The layout and dimensions can be configured freely in respect to inspection requirements. Customized to provide an inspection workflow with highest efficiency Designed for high accuracy micro-focus inspection of aerospace parts Flexible choice between multiple image sources (DR, CR, RT) Can be tailored towards specific inspection requirements and parts Approved through reference installations in the aerospace industry
