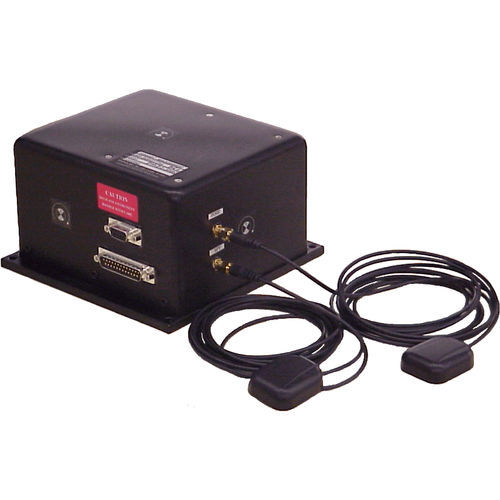

AHRS inertial system DMS-EGP02

with integrated dual-antenna GPS

The DMS-EGP02 has precision gyros along with our dual antenna GPS heading reference system. This makes the inertial measurement unit a fully static and dynamic capable Attitude and Heading Reference System (AHRS) while receiving GPS data. Features: Solid State, Strapdown System GPS Heading Reference Latitude, Longitude, Altitude Output Low Cost Rugged, High Reliability Vibration Resistant Analog and RS-232 Serial Outputs Two Year Limited Warranty Engineering Support Originally developed to meet the needs of automotive testing professionals, the Dynamic Measurement System (DMS) was designed for monitoring the drive and handling characteristics of vehicles. The DMS may be used in almost any application where triaxial angular rate and acceleration data is required. This inertial sensor provides both angular rate and acceleration outputs in analog and digital formats. The DMS features six accelerometer outputs. The X, Y, and Z axis outputs represent the accelerations in the plane of the vehicle body, while the second set of three outputs measure the acceleration aligned with an earth-level coordinate system. This allows forward and lateral acceleration measurements that are essentially free of gravity influences. The triaxial sensor set allows software alignment of sensors, greatly reducing any alignment errors. The serial interface is highly configurable and provides access to almost all operational parameters. The DMS-EGP02 is designed for vehicle applications where accurate heading is required, but a magnetic compass is infeasible. This sensor is equipped with a dual GPS antenna system that provides heading data even when the vehicle is not is motion.
