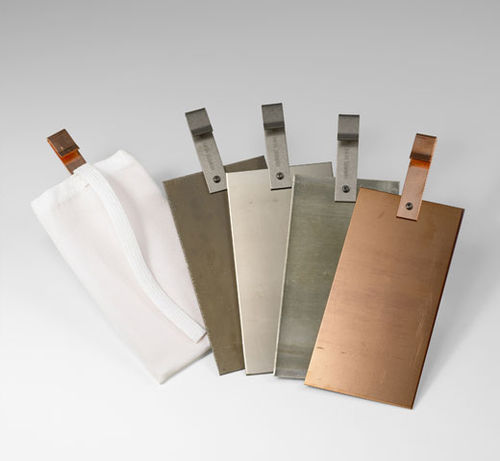

Electroplating anode plate B-94 series

Overview
Anode plates designed for 10L and 20L polyethylene tanks, suitable for electrochemical treatments and corrosion control. Available in multiple metallic and mesh configurations to match process requirements.

Dimensions
100 mm x 200 mm x thickness 2 mm

Materials / Variants

• B-94-P01-1 | Sumitomo Electrolytic Nickel
• B-94-P02-1 | Phosphorus-containing copper
• B-94-P03-1 | Sumitomo SK Nickel
• B-94-P04-1 | Oxygen-free (electrolytic) copper
• B-94-P06-1 | High-purity zinc
• B-94-P07-1 | Alloy containing 5% tin and lead
• B-94-P08-1 | Pure lead
• B-94-P09-1 | High-purity tin (Mitsubishi Electrolytic Tin)
• B-94-P12-1 | Cadmium
• B-94-P13-1 | Stainless steel SUS304
• B-94-P13-2-1 | Stainless steel SUS316
• B-94-P14-1 | Carbon, 5 mm thick
• B-94-P15-1 | Silver
• B-94-P16-1 | Titanium-platinum mesh, t1
• B-94-P17-1 | Brass (7:3)
• B-94-P19-1 | Pure iron
• B-94-P20-1 | Alloy containing 5% antimony and tin
• B-94-P23-1 | Depora nickel, 10 mm thick
• B-94-P26-1 | Titanium
• B-94-P28-1 | Titanium-iridium (for copper sulfate)
• B-94-P28-3-1 | Titanium-iridium mesh, 1 mm thick (for copper sulfate)
• B-94-P28-2-1 | Titanium-iridium (for gold, trivalent chromium, etc.) — anode bag not included; diaphragm holder sold separately
• B-94-P28-4-1 | Titanium-iridium mesh, 1 mm thick (for gold, trivalent chromium, etc.) — anode bag not included

Standard inclusion

• Supplied with a titanium hook and anode bag as standard.
• Copper plates are supplied with a copper hook.
• Titanium‑platinum and titanium‑iridium plates are supplied with a fully coated titanium hook.
• Some titanium‑iridium variants are supplied without an anode bag; diaphragm holder available as separate accessory.

Related products (names only)

• B-92-P09 | Diaphragm-type anode holder for 10L/20L polyethylene tanks
• B-94-P24 | Anode bags (unlined) for 10L/20L polyethylene tanks
• B-94-P24-1 | Anode bag (brushed) for 10L/20L polyethylene tanks
• B-94-P25 | Copper hooks for 10L/20L tanks
• B-94-P25-2 | Titanium hooks for 10L/20L tanks

Technical specifications

• Model series: B-94
• Intended use: Anode plates for 10L and 20L polyethylene aquariums / tanks
• Dimensions: 100 mm x 200 mm x thickness 2 mm
• Included items: titanium hook and anode bag (exceptions noted above)
• Available materials: see Materials / Variants list
• Accessories: diaphragm holder sold separately where required
