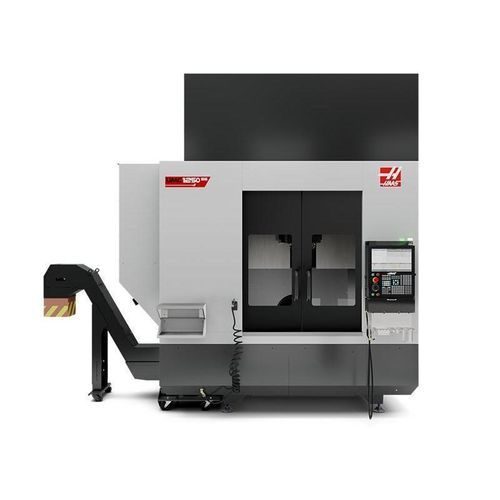

Overview The UMC-1250SS/50 is the Super-Speed variant of the 50-taper UMC-1250/50 combining large travels and a 30" platter with a 12,000-rpm, 50-taper inline spindle. It delivers faster rapids and increased trunnion speeds to reduce cycle times for 3+2 operations and simultaneous 5-axis machining of larger parts. The 50-taper spindle contact area supports longer tooling for deep-pocket work and improved access to complex geometries, making the machine suitable for heavy-duty aerospace, energy and industrial components.

Key Features

• Simultaneous 5-axis machining for complex geometries
• 12,000 rpm 50-taper inline spindle (CT/BT50)
• High-speed trunnion and faster rapids to reduce cycle times
• Large-capacity 30+1 side-mount tool changer (SMTC)
• Wireless Intuitive Probing System (WIPS) included

Model Short Description Super-Speed 5-Axis 50-Taper CNC vertical mill, 50.00 in x 30.00 in x 28.00 in travels (1270 x 762 x 711 mm)

Travels (S.A.E | METRIC)
X Axis | 50.00 in | 1270 mm
Y Axis | 30.00 in | 762 mm
Z Axis | 28.00 in | 711 mm
Spindle Nose to Platter (~ max) | 32.0 in | 813 mm
Spindle Nose to Platter (~ min) | 4.0 in | 102 mm

Spindle
Max Rating | 60.0 hp | 44.7 kW
Max Speed | 12000 rpm | 12000 rpm
Max Torque | 140.0 ft-lbf @ 2200 rpm | 189.8 Nm @ 2200 rpm
Drive System | Inline Direct-Drive
Taper | CT or BT 50
Bearing Lubrication | Air / Oil Injection
Cooling | Coolant Jacket
Cooling (aux) | Air Cooled

B Axis – Tilt
Travel | 120° to 35° (tilt range as per spec sheet) | 120° to 35°
Max Speed | 170 °/sec | 170 °/sec
Torque (Continuous) | 2240 ft-lbf | 3037 Nm
Brake Torque | 2000 ft-lbf | 2712 Nm

C Axis – Rotation
Travel | 360 ° | 360 °
Max Speed | 179 °/sec | 179 °/sec
Torque (Continuous) | 1854 ft-lbf | 2514 Nm
Brake Torque | 900 ft-lbf | 1220 Nm
Max Part Swing | 39.0 in | 991 mm

Platter
Platter Diameter | 30.00 in | 762 mm
Max Weight on Platter | 1000 lb | 454.0 kg
Max Weight on Platter w/Pallet Pool | 500 lb | 226.8 kg
T-Slot Width | 0.626 in to 0.630 in | 15.90 mm to 16.00 mm
Number of Std T-Slots | 7

Feedrates
Max Cutting | 833 ipm | 21.2 m/min
Rapids on X | 1200 ipm | 30.5 m/min
Rapids on Y | 1200 ipm | 30.5 m/min
Rapids on Z | 1200 ipm | 30.5 m/min

Axis Motors / Max Thrust
Max Thrust X | 3300 lbf | 14680 N
Max Thrust Y | 3300 lbf | 14680 N
Max Thrust Z | 4050 lbf | 18015 N

Tool Changer
Type | SMTC (Side-Mount Tool Changer)
Capacity | 30+1
Max Tool Diameter (full) | 4.0 in | 102 mm
Max Tool Diameter, Large (adjacent empty) | 7.0 in | 178 mm
Max Tool Length (from gage line) | 16.00 in | 406 mm
Max Tool Weight | 30.0 lb | 13.6 kg
Tool-to-Tool (avg) | 4.20 s
Chip-to-Chip (avg) | 6.30 s

General
Coolant Capacity | 55 gal | 208 L

Air Requirements
Air Required† | 4 scfm @ 100 psi | 113.0 L/min @ 6.9 bar
Inline Air Hose | 3/8 in
Coupler (Air) | 3/8 in
Air Pressure Min | 80 psi | 5.5 bar

Electrical Specification
Spindle Speed | 12000 rpm
Drive System | Inline Direct-Drive
Spindle Power | 60.0 hp | 44.7 kW
Input AC Voltage (3 Phase) - Low | 220 VAC
Full Load Amps (3 Phase) - Low | 105 A
Input AC Voltage (3 Phase) - High* | 440 VAC
Full Load Amps (3 Phase) - High* | 53 A

Shipping Dimensions & Weight (selected)
Domestic Pallet | 177.0 in x 110.0 in x 121.0 in | 450 cm x 279 cm x 307 cm
Export Crate | 177.0 in x 112.5 in x 125.0 in | 450 cm x 286 cm x 318 cm
Weight | 18820 lb | 8537.0 kg

Included / Standard Features (selected)

• 12,000-rpm inline 50-taper spindle, 60 hp vector drive (12K 50T HP)
• 30+1 Side-Mount Tool Changer, 50-Taper (SMTC)
• Wireless Intuitive Probing System (WIPS)
• 55-gallon coolant tank (standard)
• Available control options: widescreen monitor, RJH-Touch XL, Ethernet, WiFi, HaasConnect, HSM, DWO/TCPC, Rigid Tapping

Notes Specifications above describe the standard machine configuration. Optional equipment or specific control/features may change specifications. † Air consumption can vary with selected options.
