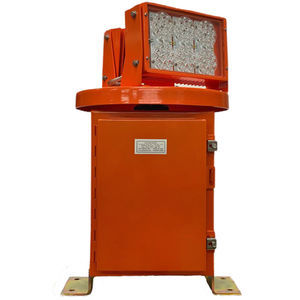

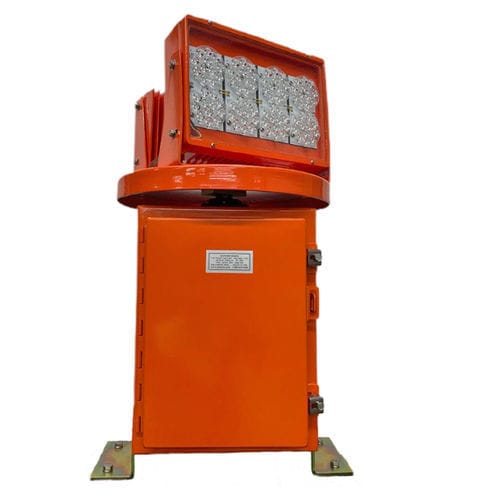

Obstruction light L-802A(L)

for airportLEDhigh-intensity

The L-802A(L) LED beacons are designed primarily for night operation as identification and location markers for airports. The patented belt-drive system eliminates the lubrication required by conventional gear-drive beacons (U.S. Patent No. 5339224). All moving parts are permanently lubricated, and there is no maintenance required except for lamp replacement. LED beacons offer 50,000-hour typical lamp life (12 years). Features •FAA ETL Certified, AIP Qualified 75% Power reduction over traditional metal halide lamps •Instant on- no more waiting for bulbs to get to full bright! •FAA Certificate of Conformance: L-802A(L)High Intensity Airport Beacon (AC 150/5345-12F) •ICAO: Aerodromes, Annex 14, Volume 1, Eighth Edition. Photometry – Chapter 5, Sec. 5.3.3.6 and 5.3.3.7 •Chromaticity – Appendix 1 Section 2.3.1 •One white LED lamp, One aviation green LED lamp •50,000 hour typical lamp life (12 years) •Patented belt-drive system eliminates the lubrication required by conventional gear-drive beacons (U.S. Pat. 5,339,224) •50,000 hour typical lamp life (12 years) •Lamps preset 5˚ above horizontal, adjustable •Optional stainless steel cabinet & bearings for highly corrosive environments •Class I (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C) •Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C) •Heater thermostatically controlled to engage at 0°F •Optional tell-tale relay (monitors lamps and triggers dry contact on outage) •Power Consumption L802A(L): Class I; 195W, Class II; 595W •Manufactured by Hali-Brite® Inc.
