Air flexible piping ATC/ATCB -8

stainless steelmetalPTFE

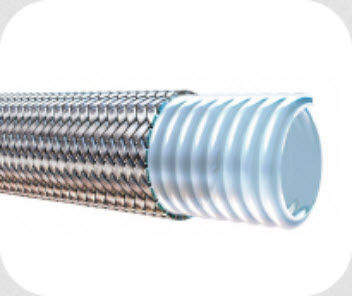

Construction: Aerocom super flexible convoluted PTFE hose series ATC has a white, non-conductive PTFE liner, externally reinforced with PTFE impregnated fibreglass in a single stainless steel wire braid. The ATCB series has a PTFE inner core with a precisely controlled amount of carbon black added to provide a continuos conductive path to metal end fittings to bleed off static electricity Applications Chemical Transfer Acid Transfer Tire Mold Equipment Purified Water Reverse Osmosis Systems Fill Lines Air Compressors Waste Water & Slurry Benefits Very flexible, requiring very little force to deflect Tightest or smallest bend radius High working pressures Light weight per foot Full vacuum rating available Temperature Rating: -65 F (-54 C) to +400 F (+230 C)
