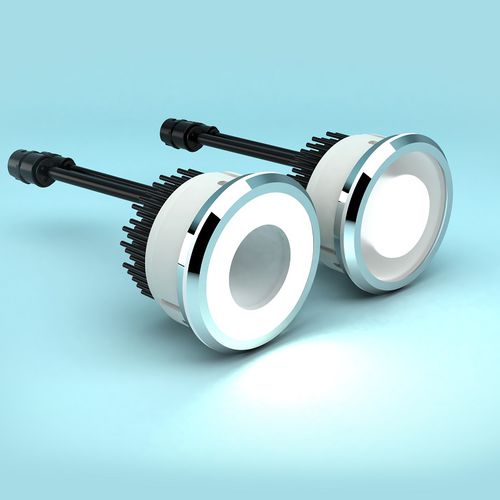

Airport light LE0126

LEDcolorwhite

LED Spot Light Elements LED spot light – application with integrated emergency light designed for various types of commercial aircraft Electrical white LED dimmable (touchless controlled) RGBW (RS485 controlled) protection against over-voltage, ESD and polarity inversion spot light: Single white or Dual white LED cluster; opt. RGB, RGBW (up to 16,7 million colors-24 bit) emergency light: Single white; opt. Single Color LEDs- R/G/B color temp: 2700 to 6500 K Mechanical lightweight injection molded Ultem housing should be combined with Light Housing (LH0127) and Lamp Covers (LC0128 or LC0129) fully qualified acc. to RTCA-DO160 Other lens cover: center – half clear (spot light) outer ring – diffuse (emergency light) available standard lamp cover finishings: grey, silver, polished chrom plated, white, black MTBF > 50,000 OH Technical data Mechanical dimensions height: 45 mm diameter: 56 mm weight: 0,120 kg max. (0,175 kg incl. housing + cover) Electrical data spot light: 28 V DC emergency light: 6/28 V DC power consumption spot light: max. 5,5 W power consumption emergency light: max. 1,6 W/1,5 W
