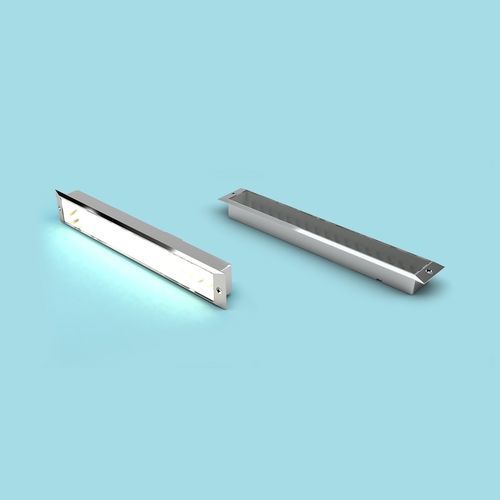

Aircraft cabin lighting LD0500
LED

aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
Add to favorites
Compare this product


Characteristics

Applications
for aircraft cabins
Illumination technology
LED

Description

LD0500 LED Work Lights Description LED Work Lights, application designed for Airbus A318, A319, A320, A321, A330, A340, A380 Key features Electrical step dimming (0, 60 and 100 %) PWM dimming for DC-variants possible pigtail or receptacle MS24264R8B3PN (115 V AC), MS24264R10B5PN (28 V DC) protection against over-voltage, short-circuit, over-temperature Mechanical The maximum temperature of all touchable parts does not exceed 55°C (at ambient temperature of 25 °C) fully qualified acc. to RTCA-DO160 Other lens cover facette, diffuse, 45° prismatic lens colour temperatures 4,700 and 8,000 Kelvin MTBF > 20,000 OH Technical data Mechanical dimensions length: 282 mm width: 42 mm installation depth: 23 mm (with pigtail) 53 mm (with receptacle) weight max. 0.185 kg Electrical data voltage: 28 V DC or 115 V AC / VF 360-800 Hz power consumption: max. 6 W

Catalogs

LD0500
LD0500
2 Pages
