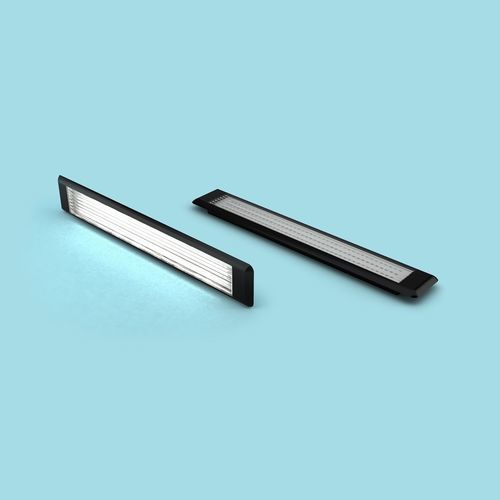

Aircraft cabin lighting LD0510
LED

aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
aircraft cabin lighting
Add to favorites
Compare this product


Characteristics

Applications
for aircraft cabins
Illumination technology
LED

Description

LD0510 LED Work Lights Description LED Work Lights, application designed for Airbus A318, A319, A320, A321, A330, A340, A350, A380, Boeing B737, B777 Key features Electrical step dimming (0, 50 and 100 %) PWM dimming for DC-variants possible pigtail or receptacle MS24264R8B3PN (115 V AC), MS24264R10B5PN (28 V DC) protection against over-voltage, short-circuit and over-temperature Mechanical Easy to install or remove fully qualified acc. to RTCA-DO160 Other lens cover facette, diffuse, clear, 45° prismatic lens colour temperatures 2,700, 4,000 and 6,500 Kelvin MTBF > 60,000 OH Technical data Mechanical dimensions length: 282 mm width: 42 mm installation depth: 15 mm (with pigtail) 45 mm (with receptacle) weight: max. 0.185 kg Electrical data voltage: 28 V DC or 115 V AC / VF 360-800 Hz power consumption: max. 6 W resp. 6 VA
