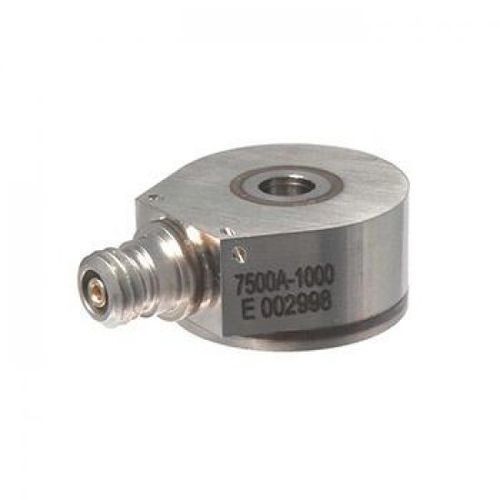

Vibrating accelerometer 7500Awithout displaytriaxialpiezoelectric
Add to favorites
Compare this product
Characteristics
- Type
- without display
- Number of axes
- triaxial
- Technology
- piezoelectric, vibrating
- Domain
- for the aerospace industry
- Acceleration range
Max.: 34,323 m/s²
(112,608 ft/s²)Min.: 12,258 m/s²
(40,217 ft/s²)- Frequency
Max.: 15,000 Hz
Min.: 0 Hz
Description
High temperature vibration sensor 7500A
- Sensitivity: 5.0 to 20 pC/g?
- Range: ±1250 to ±3500 g
- Max. frequency response: 15.000 HZ
- Operating temperature: -73°C to +260°C
7500A Accelerometer
- +260°C Charge Output Accelerometer
- 20pC/g output, 15kHz Bandwidth
- Hermetically Sealed
- Through Hole Mount
The Model 7500A is a piezoelectric charge mode accelerometer designed for high frequency vibration and shock measurements. The accelerometer incorporates an annular shear mode crystal that provides stable thermal response up to +260°C. The model 7500A is hermetically sealed and features the popular through hole mount installation for use with standard mounting screws.
Features
- 7pC/g to 20pC/g Sensitivity
- Wide bandwidth up to >15kHz
- -73°C to +260°C Operating Range
- Hermetically Sealed
- Annular Shear Mode
- Isolated Mounting Surface
- Stable Temperature Response
Applications
- Vibration & Shock Monitoring
- High Temperature Applications
- Flight Testing
- Gearbox Vibration Monitoring
- High Frequency Applications
