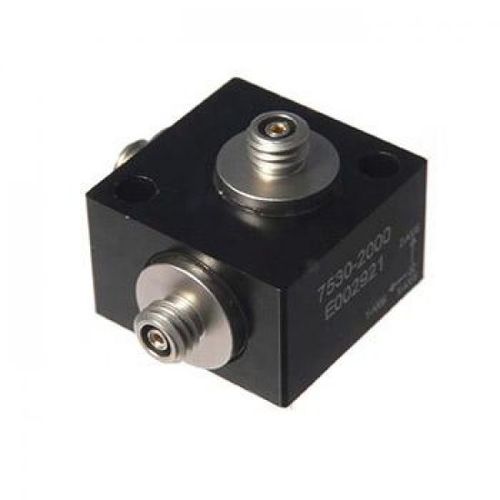

Vibrating accelerometer 7530A

without displaytriaxialpiezoelectric

High temperature vibration sensor 7530A - Sensitivity: 4.0 to 5.6 pC/g? - Range: ±4000g - Max. frequency response: 0.3 to 6000 HZ - Operating temperature: -73°C to +200°C 7530A Accelerometer - Triaxial Charge Output Accelerometer - +200°C Temperature Range - Hermetically Sealed - 5.6pC/g Charge Output The Model 7530A is a triaxial piezoelectric charge mode accelerometer designed for high frequency vibration and shock measurements. The accelerometer incorporates three independent annular shear mode crystal assemblies installed with a compression ring that eliminates the usage of epoxies that can affect long term stability at elevated temperatures. The annular shear crystals also provide a stable thermal response up to +200°C and a nominal charge output of 5.6pC/g which offers optimum signal to noise ratio. Features - -73°C to +200°C Operating Range - Wide bandwidth up to 6kHz - Isolated Aluminum Housing - Annular Shear Mode Crystals - Independent Channels - Stable Temperature Response Applications - Vibration & Shock Monitoring - High Temp Applications - Triaxial Applications - High Frequency Monitoring - General Purpose Usage
