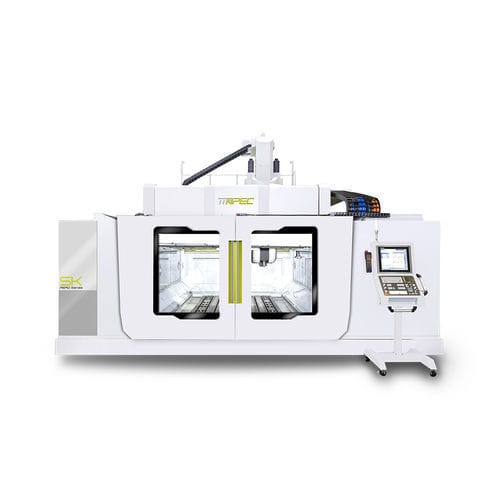

5-axis machining center SK series

with swiveling spindlegantryfor the aerospace industry

-For aerospace aluminum machining -5-axis simultaneous machining -U-shape structure -X/Y axis driven by linear motor -Z-axis driven by double ball screws -50% space saving The lowest gravity center in the world Zero distance between the gravity of the moving parts and the driving plane makes the gravity center closer to the driving plane. The machining stability could then be improved and the best machine rigidity could be ensured. Crossbeam flushing system A high-pressure pump with groups of powerful nozzles can quickly remove the chips. Complex chip removal system A dual-chip removal system with a large-capacity water tank could make coolant and chip removal stable and efficient. Automatic top-roof cover Movable beam design of top-roof cover could prevent spreading of chips and coolant liquid. Automatic attachment head exchange system Different angle heads could be mounted to match various applications and it is best for machining in narrow spaces. Z-axis driven by double ball screws Double ball screws in Z-axis and twin servo motor driving provide high dynamics and stable cutting accuracy.
