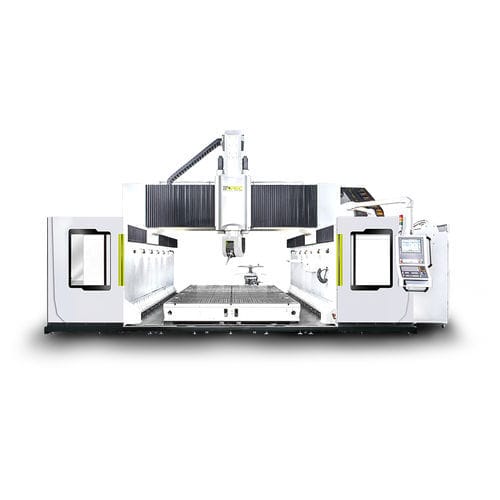

5-axis machining center CM 3040

with swiveling spindlegantryfor the aerospace industry

-For aerospace composite processing -Dust collecting and filtering system -Xaxis driven by rack and pinion -Y/Z-axis driven by ball screws The NC controllable telescopic dust suction hood can stretch automatically by NC code or M function, and won’t interference tool changing. NC controllable top roof sliding cover It can prevent the oil mist and dust from overflowing the processing area to protect the health of the operator and the keep air quality. Rapid traverse - m /min - XY=30 Z=20 Spindle taper - - HSK63F Spindle power ( S 1 / S6) - kW - 20/25 Spindle torque ( S 1 / S6) - Nm - 32/40 Recommended 2-axis head - - Mono Support Milling Head Swivel/Rotation Torque - Nm - A=133/286 C=66.2/128 Swivel/Rotation Speed - rpm - A=C=100(cont) Swivel/Rotation Angle - deg - A=±110°~±125° C=±360° Tool shank - pcs - 20T Max. tool length - mm - 300 Max. tool diameter with adjacent tool - mm - Ø70 Weight - tons. - 35-65
