Baggage scanner MX100100D

for narcotics detectioninspectionfor airport

MX100100D Mobile Dual-View X-Ray Scanner – Baggage & Parcel Inspection – 1010×1005 mm Tunnel – Utility Vehicle Mounted – Material Discrimination​


Mobile dual-view X-ray scanner delivering exceptional image quality with 38 AWG resolution and 35 mm steel penetration. Compliant with European regulations featuring 1010 × 1005 mm tunnel. Dual-view technology simultaneously generates horizontal and vertical views of inspected objects, enhancing fraud detection and inspection speed.​


Advanced Dual-View Technology
Images from each view displayed on dedicated monitors. Two perpendicular views provide comprehensive perspective of scanned objects, facilitating identification of dangerous items and contraband hidden in overlapping areas.
​

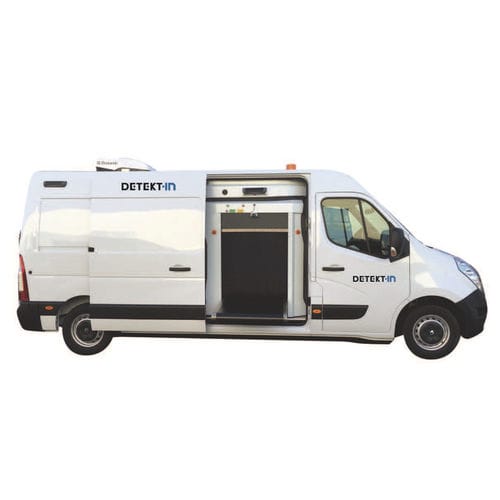

Optimal Road Mobility
Integrated into RENAULT MASTER N1 vehicle or equivalent with standard car license. Compact dimensions 6200 × 2045 × 2700 mm for optimal maneuverability. Gross vehicle weight >3500 kg. Ideal for rapid interventions and temporary mobile applications.
​
Automatic Detection and TIP
Optional explosives/narcotics automatic detection based on atomic number analysis. Material classification according to atomic numbers.
​Optional integrated TIP (Threat Image Projection) system for operator training and performance monitoring. High-density zone alarms available.​


Enhanced Radiation Protection
Radiation exposure less than 1 µGy/h (at 5 cm from scanner), compliant with French and international standards. Standard timestamped image archiving capacity up to 100,000 images.
​
Technical specifications

• Tunnel: 1010 mm (W) × 1005 mm (H)
• Maximum load: 200 kg; Conveyor speed: 0.2 m/s
• Wire resolution: 38 AWG; Steel penetration: 35 mm; Zoom: Up to 32×
• Storage: Up to 50,000 images (100,000 timestamped optional)
• Dimensions: 6200 × 2045 × 2700 mm (with A/C); Gross weight: >3500 kg
• Optional functions: Explosives/narcotics detection, high-density alarms, TIP

Mobile dual-view solution for baggage, suitcases, and parcel inspection at airports, railway stations, customs, police posts, sensitive infrastructure, and events requiring flexibility and rapid response.
