Baggage scanner MX9080T

for explosives detectionfor narcotics detectioninspection

MX9080T Mobile X-Ray Scanner – Baggage & Parcel Inspection – 900×808 mm Tunnel – Utility Vehicle Mounted – Automatic Detection – Integrated TIP

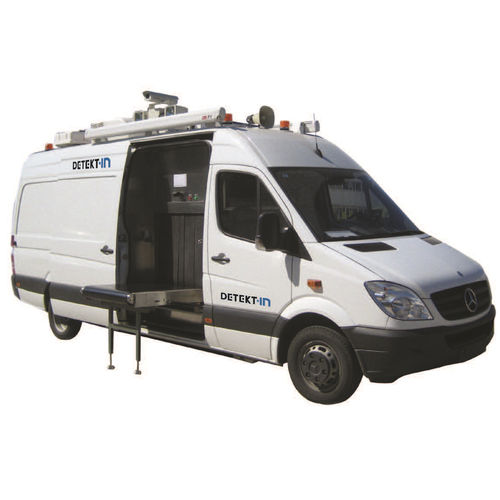

Mobile X-ray inspection system facilitating mobile screening of parcels and baggage. Lightweight standard vehicle equipped with large-dimension X-ray tunnel. Excellent image quality and powerful analysis tools facilitating decision-making. Compliant with European regulations featuring 900 × 808 mm tunnel.​


Image Quality and Automatic Detection
High image quality with 35 mm steel penetration and 38 AWG wire resolution.
Automatic detection and alarms for explosives and narcotics based on atomic number analysis.
Material classification according to atomic numbers.
​
Optimal Road Mobility
Integrated into RENAULT MASTER N1 vehicle or equivalent with diesel engine.
Compact dimensions 6200 × 2045 × 2700 mm for optimal maneuverability.
Gross vehicle weight 3350 kg.
Ideal for rapid interventions and temporary mobile applications.
​
Intuitive Interface and TIP
User-friendly intuitive interface for rapid analysis.
Optional integrated TIP (Threat Image Projection) system for operator performance monitoring, training, and threat detection improvement.
High-density zone alarms available.
​
Radiation Protection and Storage
Radiation exposure less than 1 µGy/h (at 5 cm from scanner), compliant with French and international standards.
Storage capacity up to 50,000 images.
Zoom up to 64× for detailed examination.
​
Technical Specifications

• Tunnel: 900 mm (W) × 808 mm (H)
• ​Maximum load: 200 kg;
• Conveyor speed: 0.2 m/s
• ​Wire resolution: 38 AWG;
• Steel penetration: 35 mm;
• Display resolution: 1280 × 1024 pixels
• ​Zoom: Up to 64×;
• Storage: Up to 50,000 images
• ​Dimensions: 6200 × 2045 × 2700 mm (with A/C);
• Gross weight: 3350 kg
• ​Optional functions: Explosives/narcotics detection, high-density alarms, TIP

Mobile solution for baggage, suitcases, and parcel inspection at airports, railway stations, customs, police posts, sensitive infrastructure, and events requiring flexibility and rapid response.
​
