Professional UAV FC100

for logisticstransportbi-rotor

Overview

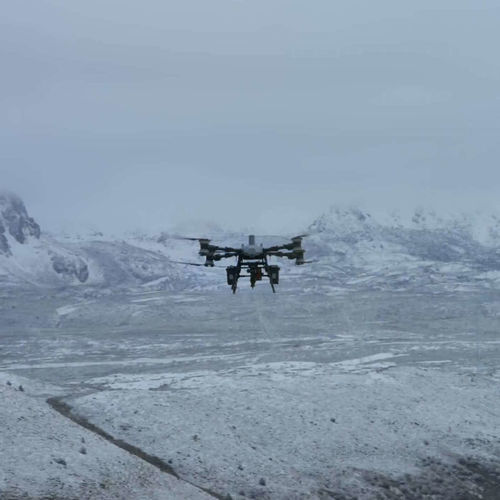

DJI FC100 (DJI FlyCart 100) is a heavy-payload delivery aircraft engineered for long-range missions and complex operational environments. It supports single- and dual-battery modes, offers an integrated Flagship Winch System with Electric Hook, interchangeable payload systems, an integrated parachute and advanced sensing for enhanced operational safety.

Key Features

• Payload modes: up to 100 kg (single battery) or 85 kg (dual batteries).
• Dual-battery redundancy and hot-swapping for continuous operations.
• Flagship Winch System: 30 m rope, retract speed up to 1.2 m/s under heavy load, automatic/manual release and cable discard escape.
• Integrated multi-redundancy parachute deployable at low altitude under MTOW.
• DJI Delivery App & DJI DeliveryHub for mission planning, A-B routing, AR display and fleet management.

Flight Performance & Airframe

• Coaxial dual-rotor layout for compact footprint, high load capacity and propulsion redundancy (propeller stop protection, clamps).
• 62-inch carbon-fiber propellers with optimized airfoil for energy efficiency and high-temperature rigidity.
• Max single-axis thrust: 82 kg; improved single-axis system efficiency versus previous models.

Safety & Sensing

• Intelligent Safety System: LiDAR (dense point cloud up to 300,000 pts/s), millimeter-wave radar array (front/down/rear) and Penta-Vision suite with FPV low-light full-color camera.
• AR safety assistance for pedestrian and vehicle detection during takeoff/landing; AR is advisory and operator confirmation is required.
• Obstacle detection for aircraft and cargo (performance depends on environment, lighting and precipitation).
• ADS-B receiver available with Flagship Winch System for crewed-aircraft awareness.

Payload & Winch System

• Two interchangeable payload systems supported; Electric Hook with wireless charging and app/button control.
• Wireless charging limit for hooks: 45 W; Type-C charging max 30 W.
• Real-time weighing with audible and visual alerts to prevent overloading.
• Auto Balance Control with triaxial force sensor to reduce cargo swing; rope discard/melt escape for disentanglement.

Power, Batteries & Charging

• Compatible batteries: DB2160 / DB2212 intelligent flight batteries (example 41 Ah) with ultra-fast charging and triple air-channel cooling.
• Dual-battery mode with hot-swap capability and battery heating (requires Battery Incubator accessory).
• Charging solutions: C10000 (single-phase 9,000 W), C12000 (three-phase 12,000 W), D14000iE generator and additional charging accessories.

Remote Controller, Transmission & Operation

• DJI RC Plus 2 available: 7-inch high-brightness display (up to 1,400 nits) and Dual Controller Mode for two-pilot operation.
• Upgraded O4 video transmission for stable long-range links; optional 4G Cellular Dongle Kit and D-RTK3 relay for extended coverage.
• Advanced autonomy: Tap-to-Fly, A-B route operation, terrain-following, waypoint-linked winch actions and no-roll flight support (where firmware permits).

Accessories & Ecosystem

• Supports PSDK and high-power payload interface up to 3,000 W for third-party integrations.
• Available accessories: DB2160 heat sink, DB2160/DB2212 batteries, Battery Incubator, DJI RC Plus 2, D-RTK 3 station and pole/tripod, intelligent power supplies, generators and Cellular Dongle Kit.

Operational Considerations

• Designed for complex scenarios including mountainous and over-water operations with multi-layer safety protections for crew, aircraft and cargo.
• Tested for temperature extremes, wind resistance, winch and electric hook cycles, and parachute deployments.
• Activation required via the DJI Delivery app.

Technical specifications

• Model name: DJI FC100 (DJI FlyCart 100)
• Max Payload: 100 kg (single battery); 85 kg (dual battery)
• Max Takeoff Weight (performance spec): up to 170 kg (regional restrictions may apply)
• Max Flight Distance: up to 12 km (measured with 149.9 kg takeoff weight under test conditions)
• Max Flight Altitude (no payload): 6,000 m
• Max Wind Speed Resistance (takeoff/landing): 12 m/s
• Max Single-Axis Thrust: 82 kg
• Propellers: 62-inch carbon fiber
• ESC rating: 420 A
• Winch: 30 m rope; retract speed up to 1.2 m/s; auto/manual release and cable discard escape
• Parachute: multi-redundancy; terminal descent speed ~7 m/s under test
• Sensors: LiDAR, millimeter-wave radar array, Penta-Vision + FPV low-light camera
• Ingress Protection: IP55 (propulsion excluded; protection may decline with wear)
• Operating Temperature: -20° to 40° C (components/accessories may differ)
• Battery charging: ultra-fast support; wireless hook charging limit 45 W; Type-C charging up to 30 W
• Video Transmission Range: up to 20 km (FCC); up to 12 km (SRRC); up to 10 km (CE/MIC)
• Interfaces: PSDK support and up to 3,000 W high-power payload interface
• Onboard systems: Electric Hook, Real-Time Weighing, Audible & Visual Alerts, Dual-Battery Redundancy, Battery Heating (with incubator), Auto Balance Control
